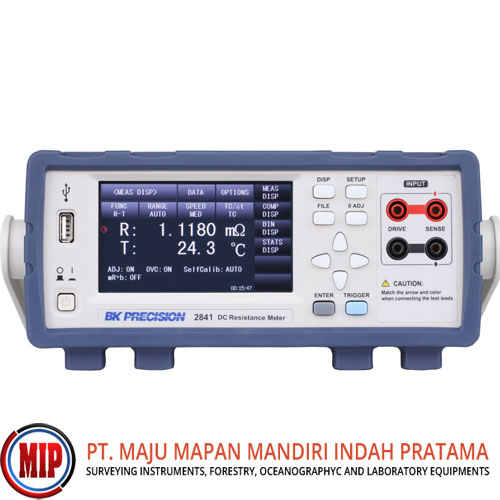

BK Precision 2841 DC Resistance Meter

The BK Precision 2841 DC Resistance Meter 20 kΩ features a high accuracy and resolution, and is ideally suited for measuring contact resistance of relays, switches, interconnects, PCB traces, bonds, and cables. The 2841 is economically priced to meet the need of applications where extended range and temperature correction are not required. The large color touch screen with user-friendly interface provides intuitive operation, while using the software keypad of the touch screen allows users to easily set various functions and values. Handler interface with high-speed measurement capabilities enables the 2841 Resistance Meter to be used for evaluating and bin sorting of large component quantities. The vivid 4.3-inch TFT LCD color touch screen and keypad provide intuitive operation. The 2841 model adds extended range, accuracy, temperature measurement and functions. Measure low resistivity materials with offset voltage compensation to reduce the influence of thermal EMF. Cable error detection displays a message when one of the terminals is open, which helps identify defective test leads or poor contact that can cause unreliable measurements.

Part Number: 2841-230V
AC input: 110 to 240 VAC ± 10 %
Resistance Range: 100 MΩ
4.3-inch color touch screen
One touch full screen measurement view
Simultaneous display of two different measurements
Four-terminal Kelvin type test leads included
Temperature measurement with correction (2841 only)
Low power test mode to protect DUT
Manual or Auto ranging
User selectable speed options
Maximum sample rate: 50 samples per second
Offset voltage compensation (OVC)
Zero correction (0 ADJ)
Δ% mode for quickly determining the percent difference between components
Bin-sorting with Statistical functions
Comparator and pass/fail alarming beeper function
Memory for 30 groups of parameters
Screen capture to USB drive
Automatically update operation software through USB
Power line filtering to eliminate the influence of the power noise on the instrument
Trigger delay
Handler interface
Standard RS232 and USBTM
LAN interface (2841 only)
Applications:
Measuring contact resistance
Relays
Switches
Interconnects
PCB traces
Bonds
Cables
Extended range
Accuracy and temperature measurement
Evaluating coils
Motor windings
Transformers
Actuators
Conductive materials

Include:
(1) 2841 - DC Resistance Meter
(1) AC Power Cord
(1) User Manual
(1) Kelvin Test Leads (TLDK1)
(1) Temperature Probe TPTC2 (model 2841 only)
(1) Test Report
(1) Certificate of Calibration
