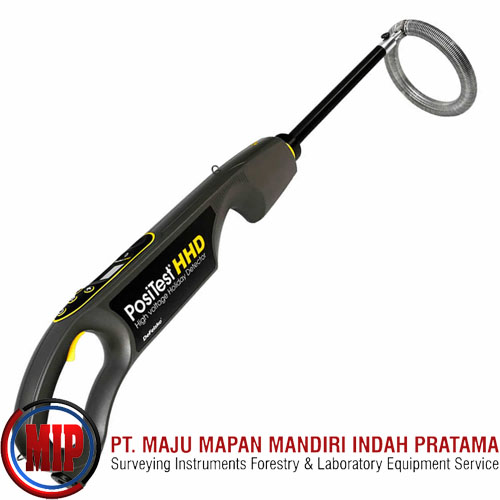

DEFELSKO HHD KIT PosiTest High Voltage Holiday Detector

The DeFelsko PosiTest HHD High Voltage Holiday Detector uses pulse DC technology, offering a user-adjustable voltage range from 0.5 to 35kV for detecting holidays, pinholes and other discontinuities in coatings up to 20 mm (780 mils) thick. The versatile PosiTest HHD is ideal for use with a wide range of rolling spring and flat wire brush electrodes — custom sizes are available upon request. Alternatively, use existing electrodes with industry-standard adaptors.

Features:
Simple
Easy-to-use with bright, multicolor LCD
Ready to measure — comes with everything needed for testing
Audibly and visibly alerts when flaws/holidays are detected
Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
Voltage calculator feature — choose one of 11 international standards, and input the coating thickness to
automatically calculate the required test voltage

Versatile
A wide range of rolling spring electrodes and wire brushes are available. Custom sizes available upon request.
Optional handheld wand accessory coverts the detector into a wand configuration ideal for testing hard-to-reach
      areas (suitable for voltages < 15 kV)
Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes
User adjustable voltage range from 0.5 – 35 kV

Durable
Rugged, environmentally sealed ABS plastic enclosure
Weatherproof, dustproof and shockproof
Included Pelican Storm case with custom foam inserts for superior protection
Two year warranty

Powerful
Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for
differing environments.
Removable Smart lithium-ion battery provides power for up to 40 hours of continuous measurement
Safe
Press and hold Safety Trigger helps prevent accidental high voltage generation
7.6 m (25') ground (earth) cable with locking connector and spring clamp
Shock proof/creep proof — internally sealed to minimize creep distance to high voltage components. Designed in
accordance with IEC 61010-1.

Accurate
Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode
Long Form Certificate of Calibration included with each instrument
Conforms to national and international standards including ISO, ASTM and NACE

What's In The Box:
(1) PosiTest HHD
(1) 7.6 m (25') ground (earth) cable with ground clip
(1) Li-ion battery pack with built-in charge state indicator
(1) Smart charger with universal AC voltage input
(1) Stainless steel fan brush
(1) 50 cm (20" ) extension rod with thumb screw
(1) Shoulder strapInstruction Manual,
(1) Durable Pelican Storm case
(1) Long Form Certificate of Calibration traceable to NIST
(1) Two year warranty
