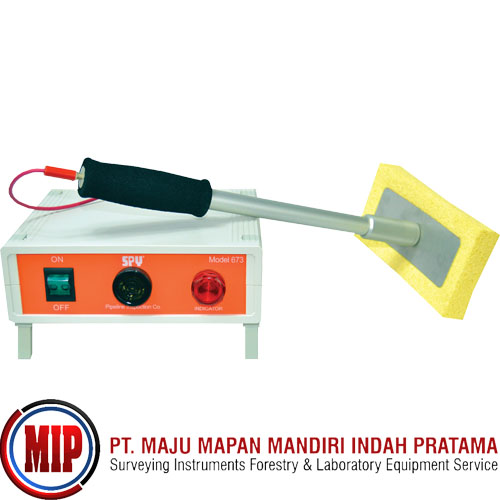

SPY 673 Kit Wet Spong Holiday Detector

The Model 673 Wet Sponge Holiday Detector for Plant or Stationary Operations is highly sensitive and accurate. A uniform coating of only one mil of paint or other non-conductive material over a metal surface is sufficient to repel a small current flow. If a pin-hole holiday is encountered, moisture from the sponge will seep into the hole and create a free path for electrical flow, activating the signal horn.

For coatings 1 to 10 mils thick, ordinary tap water can be used to wet the sponge. For coatings of 11 to 20 mils thickness, a non-sudsing wetting agent (such as Kodak Photo-flow R®) is recommended to increase ability of the moisture to swiftly make its way through the pin-holes.

Convenient output plugs on rear of unit allow use of customer supplied external signal systems such as lamps, Klaxon horns, recorders, etc. Output from these plugs is 120 volt A.C.

Technical Specs
Voltage Type: DC
Voltage Range (kV): 67.5 Volts
Voltage Output Accuracy: ±5%
Coating Range (Min-Max): 1 – 20 mils
Operating Temperature: –40°F to 148°F
Holiday Indicator Type: Audible/Visual
Battery: 120V AC
Battery Life: N/A (Number of Holidays)
Low Battery Indicator: 120V AC (Optional 220V to 120V transformer)
Unit Weight: 1.9 lbs
Unit Weight With Battery Only: 1.8 lbs
Unit Dimensions (LxWxH): 9” x 9” x 3.25”

Complette With
Included with 673 Kit
1 – 8 ft. Power Cord
1 – 14.5” Sponge Wand
1 – 12 ft. Wand Signal Cord
1 – 3 ft. Ground Cable
1 – Operating Instruction
