HIPOTRONICS HD140 AC/DC Benchtop Hipot Tester

Rp. 785,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

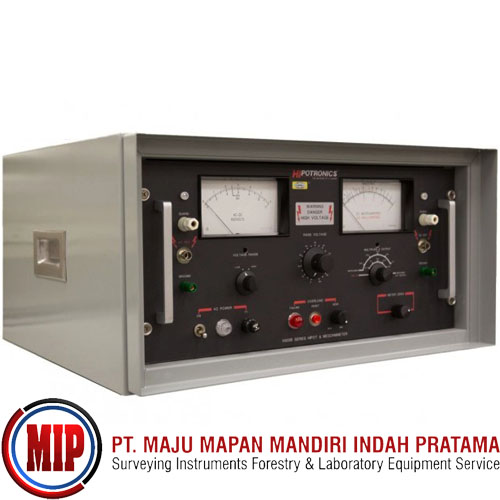

Haefely Hipotronics HD100 Series [HD103-A] AC/DC Benchtop Hipot Tester 2.5 kV/3 kV. The HD100 Series of AC/DC Hipots are accurate, durable instruments designed for production testing on all types of electrical units, systems and components. This product is simple to operate and designed for use with minimal training.

The AC/DC output configuration eliminates the need to purchase separate AC and DC Hipots, while the output connected voltmeter ensures accurate voltage measurements regardless of output loading. This series is capable of testing to most industry specifications such as UL, CSA, VDE, IEC, and MIL for dielectric withstand testing.

Features:
Continuously adjustable test voltage
Shielded output cable
Adjustable overload from 10 to 110% of rated current output
Audible / visual alarms provide a clear indication of overload situation
Zero start interlock ensures voltage is at zero before high voltage can be energized
Shorting solenoid grounds output cable and object under test

Complete Package:
(1) Power Cable
(1) HTL-S 5ft Test Lead Set (HV output and Ground)
(1) Instruction Manual
