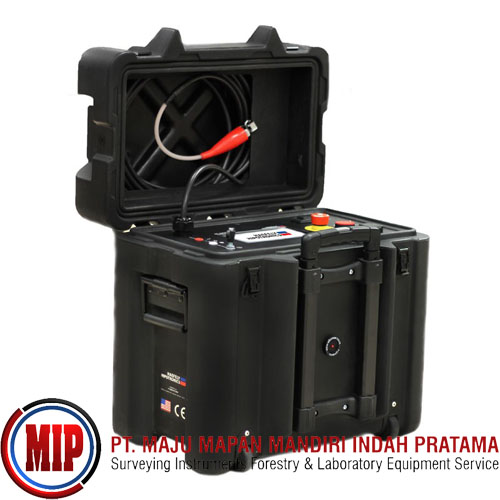

HIPOTRONICS 840PL-DC 40KV DC Hipot Tester

Haefely Hipotronics 800PL Series [840PL-DC] Digital DC Hipot Tester 40 kV 10 mA. The 800-PL-DC DC Hipots are a modern solution for testing the insulation strength of electrical apparatus. Outfitted with a state-of-the-art digital interface and extensive safety features, the 800PL-DC ensures simplistic operation, accurate results, and operator safety under all circumstances.

The 800PL-DC features the most accurate kilovoltmeter readings regardless of load current. Voltage measurements are taken directly at the output of the high voltage transformer, while current is measured at the return leg to ensure the highest accuracy. Output power is created through a fullwave, voltage multiplier.

Features:
DC hipot tests up to 40kV or 80kV at 10mA
Lightweight, rugged design for field use (57 lbs / 25.8kg)
Measures output voltage, leakage current, insulation resistance (IR), and polarization index(PI)
Adjustable test parameters such as target voltage, maximum leakage, ramp rate, and dwelltime
Recorded test results and data transfer via USB2.0
7” color, touch screen display with adjustable brightness
Full-wave voltage multiplier
Safe operation with interlock, emergency stop, and battery backup for display meters if input power is lost
Internal discharge solenoid

What's In The Box:
(1) 25ft HV Output Cable with Clamp
(1) 25ft HV Return Cable with Clamp
(1) 15ft HV Ground with Clamp
(1) 6ft Input Power Cord
(1) Interlock Plug Interlock Hand-Switch Operations
(1) Manual
(1) Calibration Certificate
