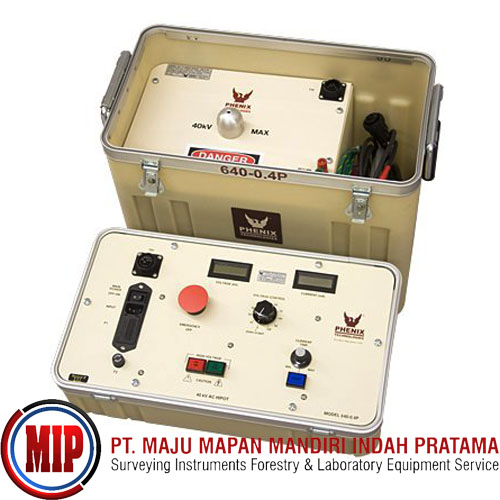

PHENIX Technologies 640-0.4P (40KVAC) Vacuum Interrupter Test Sets

Rp. 285,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Features:
Featuring 3½ digit, digital LCD display output voltmeter and current meter for easy reading even in direct sunlight
High Accuracy: +/- 1% of FS
Ruggedly constructed cases for years of field use
Lightweight portability
Zero start (safety interlock feature)
Output Termination: Toroid with output lead
Adjustable overcurrent trip from 10% to 110% of rating
Internal Short circuit protection
40kV AC, 10 mA hipot designed primarily for vacuum bottle testing, but tests breakers, switchgear, and many other apparatus
One piece portability for field testing
Lightweight (56 lbs, 25 kg)
Emergency off pushbutton
Guard ground circuit
Made in the USA

Phenix offers the premier line of portable AC Dielectric Test Sets with ratings from 15 to 200 kVAC which are suited for testing a wide range of electrical equipment. These units are lightweight and ruggedly constructed for field use. Each unit provides easy to read digital instrumentation and clean efficient controls.

Includes:
Input Power Cbale, 8’(2.4 m)
Power Interconnect Cable, 10’(3m)
Ground Cable, 10’(3m)
Output Cable, 10’(3m)
