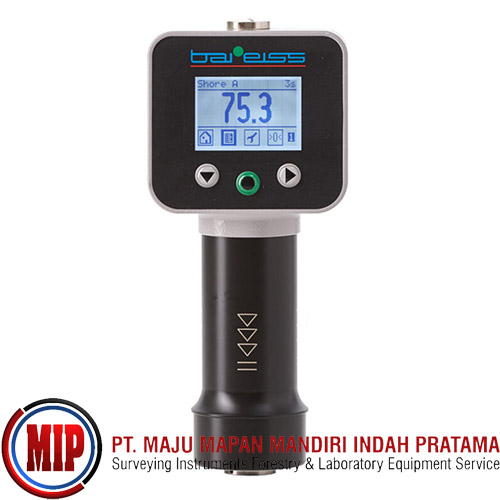

BAREISS HPE III BASIC Hardness Tester

Rp. 65,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The HPE III is the most advanced digital durometer hardness tester found in the market today. Not only is it recognized for its accuracy and reproducibility , but during the hardness measuring, the HPE III also registers humidity, environmental and sample temperature, as well as the date and time . With the handheld hardness tester, you can effortlessly measure shore hardness levels on flexible materials, polymers, and composite materials. Its sophisticated functions ensure a correct measuring process, offering protection against operating errors. This portable hardness tester has a unique and exclusive design that makes it the most reliable shore durometer on the market. A large LCD display for reading comfort, USB connection for data transfer, a rechargeable battery, and our patented handgrip for achieving correct measuring angle and amount of force are all standard features on the HPE III digital durometer tester.

Digital Durometers – HPE III Series shore hardness tester can be used with the Bareiss fully automatic or manual test stands to minimize the operator’s influence on the reading.

Features:

Test Method: Shore A

Range of Application: soft rubber, elastomers, natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc.

Memory for 300 measurements.

Graduation between 0-100 Shore.

Constant Pressure Force & Measuring Time acc. to Standards.

With USB/RS232 Interface.

In Storage Case.

With Control Ring SHORE 40.

With BAREISS Manufacturers Test Certificate.

According to DIN ISO 48-4 (DIN ISO 7619), ASTM D 2240

Specification:

Operating Temperature : 0°C to + 55°C

Specimen Temperature :0°C to + 70°C

Ingress Protection : IP 50

USB Power Supply:

Output: 5 VDC 1000 mA

Input: 100- 240 VAC 50/60 Hz 150 mA

Communication Interface:

Data output : RS232

Charging cable/ communication line : RS232/ USB- Converter

Display:

Graphic display : 102 * 64 PIXEL

Option for sensor ambient temperature & humidity:

Temperature range: -20°C to + 80°C

Humidity range : 0% to 100%

Dimensions and Weight:

Measurements W x D x H: 68 x 51 x 157 mm

Weight: approx. 300 g

Include:

(1) HPE III Basic handheld hardness tester

(1) Lithium-ion battery

(1) RS-232/USB data and charging cable

(1) Control ring 40 Shore A

(1) Operating manual
