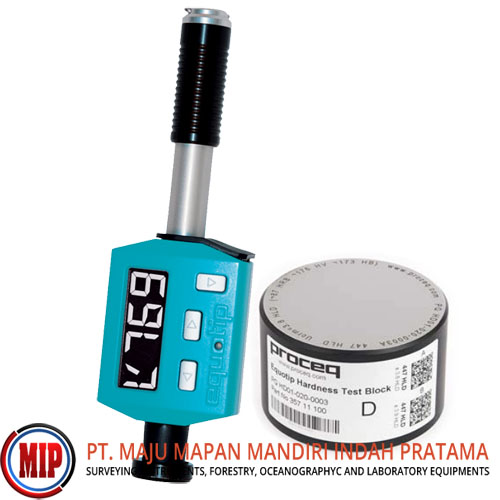

PROCEQ Equotip Bambino 2 (352 20 002) Portable Hardness Tester with Test Block

The Equotip Bambino 2 is a handy measuring device for an easy metal hardness test on most diverse part geometries. It combines modern electronics with a patented impact device that integrates the test cycle into one simple motion.

Proceq’s stand alone instrument for the metal hardness test does not require a separate indicating device, nor cables or PC hardware: It’s control menu and innovative features make the Equotip Bambino 2 the most ergonomic and easy to use integrated instrument for the metal hardness test.Automatic recognition of the impact direction and self diagnostics make the metal hardness test with the Equotip Bambino 2 incredibly easy. The large LCD display shows the individual readings and mean test results. Most common metal hardness conversions are included. The Equotip Bambino 2 is ideally suited for a quick on-site metal hardness test.

The DL Accessory Kit is used to extend the range of applications. It allows the metal hardness test in confined spaces and recessed surfaces through a long, slim testing nozzle.

Applications
Suitable for the metal hardness test on most materials. Also useful for curved and recessed sample surfaces.
Testing of metal work pieces when the test indentation should be as small as possible, in line with non-destructive testing (NDT)
Determination of the hardness of pre-assembled machines or large steel and cast constructions (e.g.  in steel mills)
Metal hardness test in confined spaces along process chains (e.g. in heat treatment shops)
Quick or manually documented acceptance tests and checks of incoming goods (e.g. from automotive sub-suppliers)
Off-site metal hardness test (e.g. technical goods purchasing or consulting)
Please feel free to contact us for more information on the metal hardness test with the Equotip Bambino 2.

Technical Data
Testing method    Leeb rebound
Impact energy    11.5 Nmm (impact body Equotip D)
11.2 Nmm (impact body Equotip DL)
Spherical test tip    Tungsten carbide, 3 mm diameter
Minimum radius of surface curvature    10 mm
Testing range    150-950 HLD
250-970 HLDL
Resolution    1 HL; 1 HV; 1 HB; 0,1 HRC; 0,1 HRB; 0,1 HS
Accuracy    ± 4 HL (0,5 % bei 800 HL)
Dimensions    147,5 x 44 x 20 mm
Weight    110 g
Housing material    scratch proofed anodized aluminum
Display    large, high contrast LCD
Internal data storage    not applicable
Communication    not applicable
PC application    not applicable
Battery    Lithion, charges through device USB port, over ~ 20,000 impacts on a full charge, intelligent wake-up/sleep mode
Operating temperature    -10 to +60 °C
Humidity    max. 90 %

Equotip Bambino 2 Hardness Tester, unit D with Proceq test block D
Equotip Bambino 2 device with impact body D, small (D6a) and large (D6) support rings, cleaning
brush, USB charger and cable, carry case, Proceq neck / wrist strap (lanyard), Equotip product CD
(includes operating and firmware upgrade instructions), product certificate
AND Equotip test block D/DC, Proceq calibrated (~775HLD/~630HV/~56HRC) with certificate
