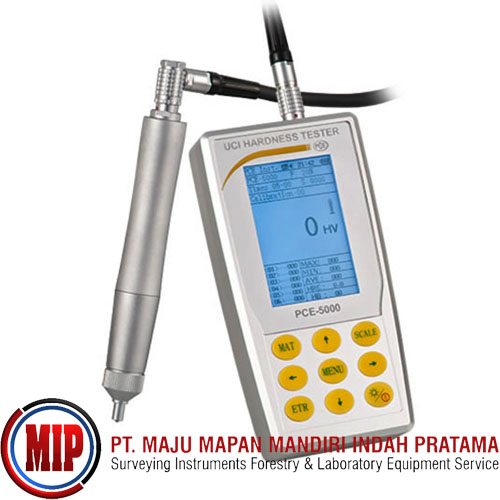

PCE 5000-UCI Portable Hardness Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
PCE-5000 UCI Hardness Tester Uses the ASTM A1038 ultrasonic contact impedance (UCI) method for metal and alloy hardness testing
The PCE-5000 is a portable hardness tester that uses the ASTM A1038 ultrasonic contact impedance (UCI) method to measure the hardness of metals and alloys with a minimum thickness of 2 mm / .08 in. Ultrasonic hardness testing is considered nondestructive, as it creates a microscopic indentation only visible when using a high-powered microscope.
Featuring a quick 2-second measurement time, this UCI hardness tester is the ideal tool for weld inspection, hardness control of metal coatings and hardness measurement of fine-grained metals, small forgings, cast materials, heat-affected zones, ion-nitrided stamping dies and molds, forms, presses, thin-walled structures and parts, bearings, tooth flanks, pipes, tanks, steel sheets and products with intricate or complex shapes.
Additional measuring sensors can be connected to the ultrasonic meter, which vary in their test force, which is applied to measure the hardness.
The different sensors measure the hardness of the objects depending on the roughness of their surface. For example, the standard sensor with 20 N measures surfaces with a roughness of less than 5 µm. The 10 N sensor measures a roughness of less than 3.2 µm and the one with 98 N measures a roughness of less than 15 µm.
Features:
Measures the hardness of metals and alloys with a minimum thickness of 2 mm
Displays measurements in Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Brinell (HB), Vickers (HV) and MPa (N/mm²) SI units
Measuring range: 61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC, 85 … 650 HB, 50 … 999 HV, 255 … 2180 MPa (N/mm²)
Accuracy: ± 1.5 HR, ± 3% HB, ± 3% HV
Stores up to 2000 measurement groups / 20 calibration sets to memory
Provides measurements in just 2 seconds
Probe fits into small spaces and hard-to-reach places
Features a large and easy-to-read LCD screen, simple calibration and an RS-232 interface
What's In The Box:
(1) PCE-5000 UCI hardness tester with 1 x 4.2V battery
(1) 20 N probe (standard)
(1) Protective cap for probe (silicon)
(1) Probe cable
(1) USB cable
(1) USB charger
(1) RS-232 interface cable
(1) Certificate of quality from the manufacturer
(1) Screwdriver
(1) Vibration-resistant carrying case
(1) User manual
