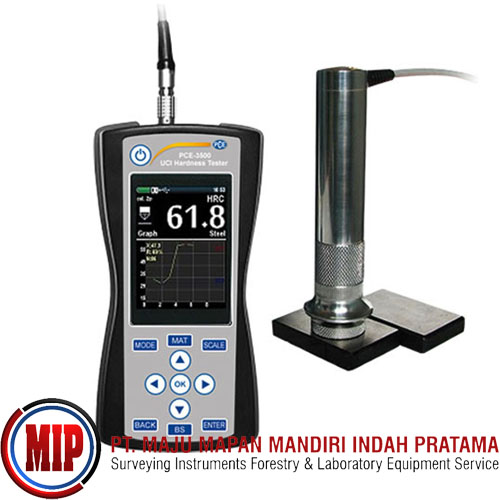

PCE 3500 Portable Hardness Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
UCI hardness tester PCE-3500 for non-destructive hardness measurement / large colour LC display / including software / HV, HRC, HRB, HB and MPa scale /with memory function / probes interchangeable / 136 ° Vickers diamond
The UCI hardness tester PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. The UCI hardness tester works on the basis of the Ultrasonic Contact Impedance test procedure. This UCI procedure works as follows: a Vickers diamond at the probe is stimulated with its self-resonance. By pushing the probe, the vibration frequency is reduced depending on the hardness of the surface and on the e module of the material and of the contact surface. The hardness of the surface can be determined on the basis of the frequency shift, taking the characteristic curve of the material into consideration.
The UCI hardness tester works non-destructively. There is a microscopically slight pressure against the surface, however, this is normally not visible. Due to the low penetration depth of the Vickers diamond, this UCI hardness tester is especially suitable for edge layer hardened components such as, for example, those that emerge when nitriding or induction hardening. It is typically used for punching tools, presses, thin-walled components, cog wheels, turbine blades, camshafts or weld seams. The UCI hardness tester is also suitable for many other hardness testing applications. It has exchangeable probes with different pressure forces and can therefore cover diverse applications.
After measuring the hardness of a component, the UCI hardness tester PCE-3500 shows different statistical values such as the MAX / MIN values and average values. Moreover, the standard deviation and further coefficients can be determined. A bar chart can be indicated. Since the UCI hardness tester is equipped with an internal memory, the measured data can be evaluated by means of a software.
Features:
Measurement in line with UCI procedure
Tests HRC, HRB, HV, HB, MPa
Measurement direction 360 °
Large colour LC display
Memory function via SD card
Different probes can be attached
Characteristic curve of material pre-calibrated
Evaluation via software possible
What's In The Box:
(1) UCI hardness tester PCE-3500
(1) 50 N UCI probe
(1) 2 GB SD card
(1) USB cable
(1) PC software
(1) Instruction manual
