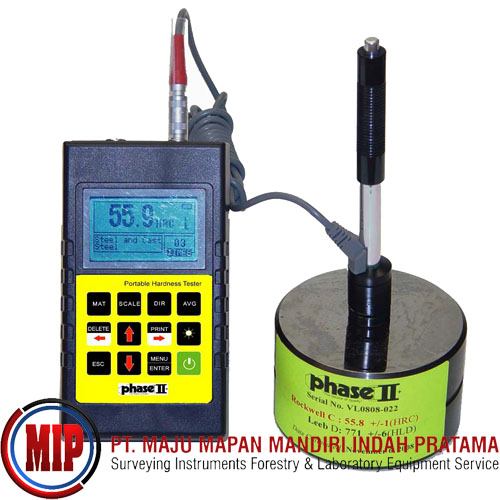

PHASE II+ PHT1700 Portable Hardness Tester

Rp. 55,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

DescriptionFeaturesApplicationsSpecificationsDownloads
Loaded with features, this economically priced hardness tester is capable of measuring the surface hardness of a broad variety of metals on flat and round surfaces. This instrument comes complete with the universal D impact device, calibrated test block and rugged carry case.

Features
Designed to test large hard parts: Tool steel should be close to 1” thick of solid material
Easy to use keypad operation
Large LCD display with back light
Automatic conversions to: Brinell, Rockwell, Vicker and Share
Automatic mean value
Data storage capacity

Appilcation
Steel & cast steel
Alloy tool steel
Stainless steel
Grey cast iron
Spheroidal iron
Cast aluminum
Brass
Bronze
Wrought copper alloy

Specification
Accuracy: +/- 0.5% (referred to L=800)
Repeatability accuracy: +/- 4L units) L=Leeb
Measuring range: 200-960 HL
Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
Battery type: AAA alkaline (2)
Operating temperature: 5-104 degrees F
Dimensions: 108 x 62 x 25mm
Weight: 230 grams

Includes: Base instrument, Impact device D ("DL" PHT-1740), Calibrated test block, Custom carry case, Cleaning brush, and Operation manual
