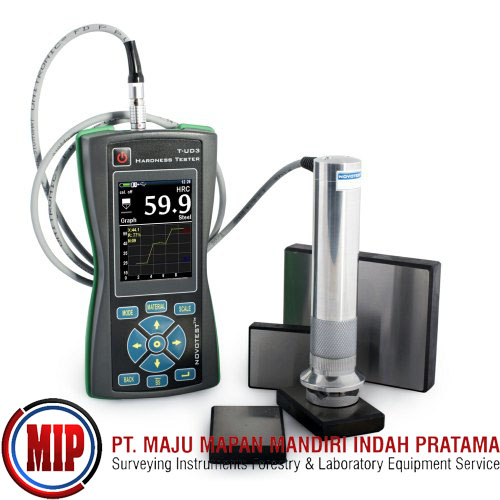

NOVOTEST T-U3 Portable Hardness Tester

The UCI hardness measuring method complies to ASTM A1038.

The ultrasonic contact impedance (UCI) probe is purposed to be used for hardness measuring in the case of the testing area minimal thickness (from 1 mm), objects of complex surface shape, and for measuring surface hardened layers hardness.



This method is very fast and easy: place the probe on the tested object surface, press the probe with the required effort to the surface and save the hardness value, shown on the display of the device. Small size diamond indenter allows measuring hardness value of all items, which are thicker than 1 mm. The UCI method of hardness testing is the least destructive because the hardness tester NOVOTEST T-UD3 with UCI probe leaves much smaller prints (imprints) than the majority of bench hardness tester would. That’s why a portable hardness tester with UCI probe is the best choice.



The Rebound (Leeb) probe is used for measuring the hardness of non-ferrous metals, cast iron, coarse-grained materials, massive products etc. The ultrasonic (UCI) probe is used for measuring the hardness of small items, objects with a thin wall, complex form, and to measure the hardness of surface hardened layers.



Specification:

Loading Force of UCI 1kgf (10N) 2.2 lbf og/eller 5kgf (50N) 11lbf

Measuring Range HV:230~940; HRC:20~70; HB:90~650. Tensile strength, MPa 370~1740

Measuring Accuracy HV:±3%HV; HRC:±1.5%HRC; HB:±3%HB

Indenter 136° Vickers Diamond Indenter (UCI), Rebound (Leeb)

Measuring Direction AAny direction 360°

Data Storage SD Memory card

Communication Upload data to PC and export as a spreadsheet (USB cable and software included)

Hardness Scale HRC, HB, HV, HRB, HL, MPa

Materials -  Ultrasonic (UCI) probe - pre-calibrated for steel

-  Rebound (Leeb) pre-calibrated for steel, cast iron, stainless steel, aluminum, bronze

-  Additional custom materials for calibration

Data display Load applied/contact, Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff, Histogram, Signal and SMART MODE (Filter of incorrect measurements).

Hardness indication Backlit Color LCD display.

Operating Environment Temperature:-20°C~40°C; Humidity: 30%~80%R.H

Power Supply DC 6V (3 pc batteries AA)

Instrument Dimensions 160x75x30mm

Net Weight Approx. 0.3kg (Without probe)

Battery Approx. 10 hours.



Complete Package:
•  Electronic block
•  UCI probe
•  3batteries AA
•  Charger
•  USB cable
•  Operating manual
•  Software for PC
•  Case
