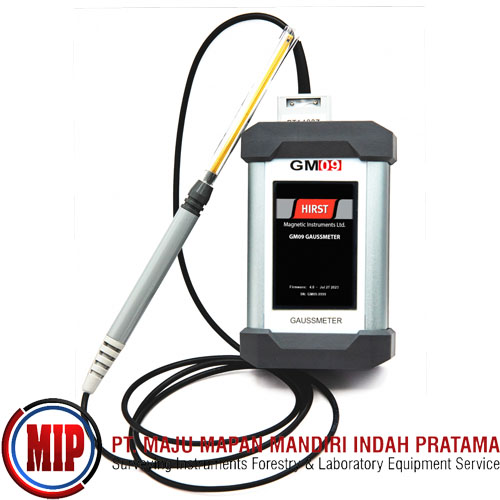

HIRST GM09 Portable Digital Gauss Meter
Rp. 58,500,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
GM09-1 is a single-axis gaussmeter featuring touch-screen interface and rechargeable Li-ion battery compatible with the extensive range of Hirst Hall sensor probes. Built-in “App” modes ensure standard tests and measurements can be carried out with ease and minimal effort. Data-logging features allow the retrieval of data using a simple USB interface, no additional software is needed as the GM09 appears as a USB mass storage device.
Accuracy
Measurement ranges AUTO, ±3 mT, ±30mT, ±300mT, ±3.000T
Repeatability Better than 0.5%
Accuracy Better than ±1% Calibrated to standards traceable to the NPL National Physical Laboratory (UK)
Operational ranges
Frequency Range Static field (DC) and AC measurements (10Hz to 6kHz)
Resolution 2 microTesla, 0.02 Gauss (Oe), 160A/m
Full Specifications
Colours and materials Anodised Aluminium with plastic end caps
Connectivity USB-C compatible port for charging and data retrieval via mass storage device interface (like a USB flash memory stick with data saved in time-stamped .CSV format)
Dimensions / Weight 139x88x49mm / 390g
Maximum field sensed ±3T (dependant on probe in use)
Measurement modes DC (with Min and Max), AC-Peak (with AC-Peak-Max), AC-RMS (with AC-RMS-Max)
Number of sensors Single channel, 1 axis sensor probe
Power Li-ion battery 3500mAh capacity, USB-C chargeable (computer or mains charger) battery life > 4-hour continuous measurement time with sleep mode and auto power-off.
Standard cable length 1.5m
Time Real time clock with time and date - Battery back-up > 3 years
Units Tesla, Gauss, Oersted (Oe), A/m (1mT = 10 Gauss (Oe) = 0.7967 kA/m)
Display Rate 3 readings per second
Display 3.5” multi-colour touch screen 320x480 px plus backlight
Temperature Coefficient Better than ±0.1% of reading/ºC including probe
Optimum Operating Temperature 20ºC – 40ºC
Optimum Storage Temperature 0ºC – 50ºC
The GM09-1 kit contains:-
GM09-1 (Single Axis).
Transverse probe – TP02 (calibrated).
GM09-1 Calibration certificate.
Zero flux chamber.
USB-C charging / computer connection cable.
Carry case.
