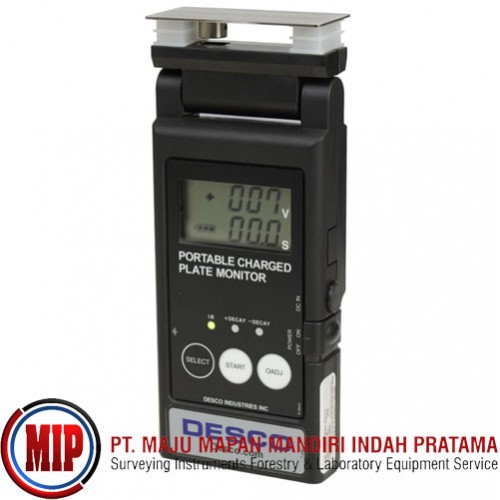

DESCO 19494 Portable Charged Plate Monitor
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Desco 19494 Portable Charged Plate Monitor (CPM) is a handheld meter designed to check the offset voltage and discharge times of air ionizers per ANSI/ESD SP3.3 and ESD TR53. The meter’s integrated timer measures decay rates from ±1000V to ±100V to determine the ionizers’ ability to neutralize both positive and negative electrostatic charges within the coverage area. The 180-degree rotary head with 2.75" x 1.25" plate allows the operator to read the display at various angles. The Portable Charged Plate Monitor is calibrated to NIST standards and includes a certificate.
Desco 19494 - Portable Charged Plate Monitor
Handheld meter for measuring offset voltage and discharge times of air ionizers
Used for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53
Timer for decay rates from ±1000V to ±100V
Measures ionizers’ ability to neutralize both positive and negative electrostatic charges within the coverage area
NIST calibrated with certificate included
Portable Charged Plate Monitor
Handheld meter for measuring offset voltage and discharge times of air ionizers
Used for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53
Timer for decay rates from ±1000V to ±100V
Measures ionizers’ ability to neutralize both positive and negative electrostatic charges within the coverage area
180° rotary head with 2.75 x 1.25" plate - enables operator to read display and at various angles
Zero point adjustment button - ensures measurement accuracy and repeatability
Powered by two AA batteries
Includes ground cord and soft carrying case
NIST calibrated with certificate included
In The Box
Portable Charged Plate Monitor
Soft Case
Wrist Lanyard
Ground Cord
AA Alkaline Batteries x2
NIST Traceable Certificate of Calibration
