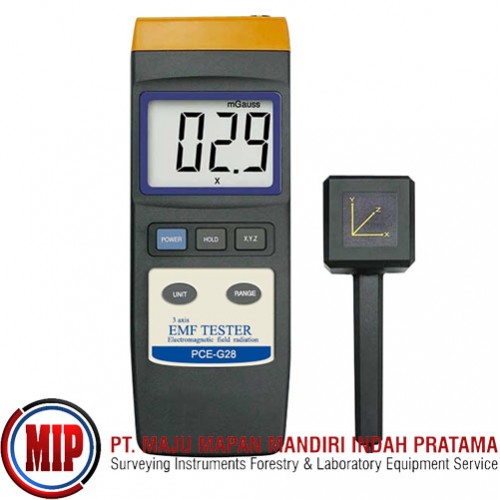

PCE G28 (EMF) Electromagnetic Field Meter

PCE-G28 is a portable, handheld gauss meter that detects electromagnetic fields (EMFs) and displays measurement results in milliGauss (mG) or microTesla (µT). This EMF radiation detector comes with an external 3-axis electromagnetic sensor (X, Y, Z direction).



- Measurement range: 0 ... 20000 mG / 0 ... 2000 µT

- Accuracy: ± 4% + 3 digits / ± 5% + 3 digits / ± 10% + 5 digits

- Resolution: 0.1 mG / 0.01 µT

- Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)

- Displays measurement results in milliGauss (mG) or microTesla (µT)

- Comes with an external 3-axis electromagnetic sensor

- Data hold functionality

- Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations

- Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards

- Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection



Technical specifications

Measurement range microTesla: 0 to 20 µT / 0 to 200 µT / 0 to 2000 µT

milliGauss: 0 to 200 mG / 0 to 2000 mG / 0 to 20000 mG

Resolution (per range) 0.01 µT / 0.1 µT / 1 µT

0.1 mG / 1 mG / 10 mG

Accuracy ±4 % + 3 digits (in range 20 µT and 200 mG)*

±5 % + 3 digits (in range 200 µT and 2000 mG)*

±10 % + 5 digits (in range 2000 µT and 20000 mG)*

*Refers to 50 - 60 Hz y < 3 V/m (RF)

Sampling rate Approx. 0.4 second

Frequency 30 ... 300 Hz

Display LCD, 3.5 digits

Power 1 x 9V battery

Dimensions Meter: 200 x 68 x 30 mm / 7.88 x 2.68 x 1.18 in

Sensor: 225 x 75 x 55 mm / 8.86 x 2.95 x 2.17 in

Weight 470 g / 1.04 lbs (including battery)
