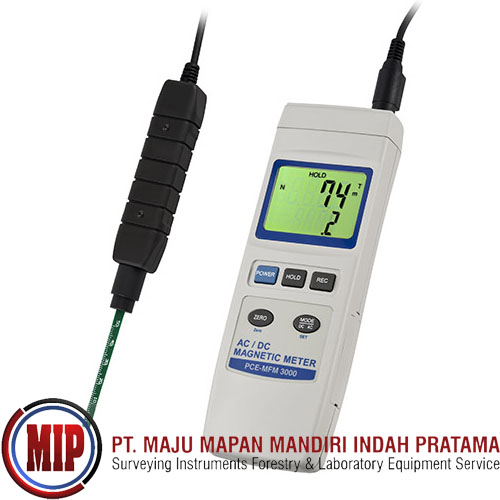

PCE MFM3000 Portable Electromagnetic Field Meter

Rp. 22,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

PCE-MFM 3000 is a handheld electromagnetic field meter or gauss meter that detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetic field measuring device comes with an external sensor and features an RS-232 port for downloading data to a PC.

Features:

- Measurement range: 0 ... 30000 G / 0 ... 3000 mT

- Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)

- Resolution: 0.1 G / 0.01 mT

- Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic fields (EMFs)

- Displays measurement results in gauss (G) or milli Tesla (mT)

- Comes with an external sensor

- Features an RS-232 port for downloading data to PC

- Max, min, data hold and auto shutdown power-saving functionality

- Ideal tool for checking magnetic valves, relays and air-core transformers

- Useful for assessing permanent magnets and rare earth magnets made of Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also known as ceramic)

- The external sensor's small, flat tip allows easy access through gaps and into tiny spaces

- Measures through casings, coverings and housings, eliminating the need to dismantle parts for inspection

Specification:

Dynamic (AC) electromagnetic field (EMF) measurements

Measurement range Sector 1: 0 ... 300 mT / 0 ... 3000 G

Sector 2: 0 ... 3000 mT / 0 ... 30000 G

Resolution Sector 1: 0.01 mT / 0.1 G

Sector 2: 0.1 mT / 1 G

Accuracy ± 5% + 10 digits

Measurable frequencies 50 Hz / 60 Hz

Static (DC) electromagnetic field (EMF) measurements

Measurement range Sector 1: 0 ... 150 mT / 0 ... 1500 G

Sector 2: 0 ... 1500 mT / 0 ... 15000 G

Resolution Sector 1: 0.01 mT / 0.1 G

Sector 2: 0.1 mT / 1 G

Accuracy ± 5% + 20 digits

General specifications

Measurement rate 1 second

Measurement direction Uniaxial

LCD 52 x 38 mm / 2.05 x 1.50 in

Functions Minimum value, maximum value, data hold and automatic shutdown

Operating conditions 0 ... +50°C / +32 ... +122°F, max. 85 % rh

Power supply

9V battery (included)

Optional 9V electric power supply (see accessories)

Input voltage Approx. 20.5-mA

Meter dimensions 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18 in

Sensor dimensions 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75 in

Weight 275 g / 0.61 lb

Complette:

1 x PCE-MFM 3000 electromagnetic field (EMF) meter

1 x External sensor

1 x 9V battery

1 x Carrying case

1 x User manual
