ALPHALAB GM1-ST Portable Digital Gauss Meter

Rp. 26,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

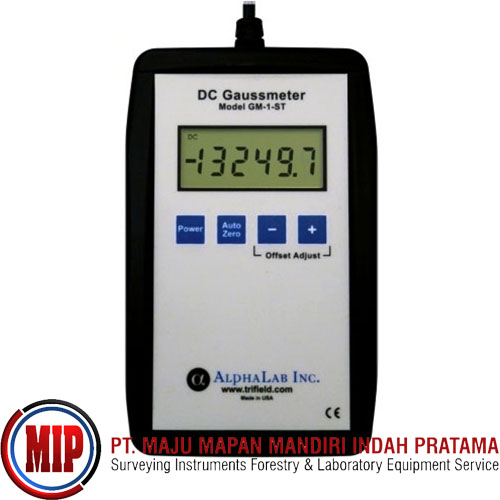

The DC Gaussmeter Model GM1-ST is measures strength and polarity of magnetic fields up to 19,999.9 gauss. The sensor can easily fit in a .060 inch (1.5 mm) gap and is at the end of a 100 cm flexible cable. The sensor end can be bent if required for a variety of situations. Place the sensor on a magnet face to measure the field. With a resolution of 0.1 gauss, it can measure any tiny variation from magnet to magnet or it can detect if a given magnet has lost even a little strength. Bend the sensor in to a “L” to measure inside a DC solenoid tube. The 5 ½ digit display requires neither auto nor manual range change, making it easier to use than older style 3 ½ or 4 ½ digit meters. Turn on the meter and immediately begin reading fields (updates 4 times per second). There is no setup required, making this the fastest, easiest gaussmeter available.

Features

Portable for easy measurements in factories or other industrial environments

High dynamic range 5 ½ digit display reads even the strongest magnets with 0.1 gauss resolution, including polarity

Turns on instantly, updates four times a second, no setup or initial calibration required

Auto-Zero (subtracts the present field from subsequent readings); also a fine offset control

Offset range is the full ±19,999.99 gauss

1% accuracy at room temperature, including probe

Certificate of NIST traceability included

Probe and Battery Included

CE Compliant

Detachable Rubber Boot Included

Applications

Measures all permanent magnets. (Maximum field of magnets is about 15,000, which occurs only with rare-earth magnets in a gap configuration.)

High resolution of 0.1 gauss over the entire range of +19,999.9 to -19,999.9 gauss allows detection of any variation in field from a magnet.

Measures inside DC Solenoids (probe is bent into “L” shape to measure this).

Sufficient resolution to map fields far from magnets.

SPECIFICATIONS: 1-axis DC Gaussmeter GM1-ST

Resolution: ±19,999.9 G with polarity indicator

Resolution: 0.1 G

Accuracy: ±1% of reading (16° to 29°C); ±2% (-4° to 65°C)

Offset: Auto-Zero. Also fine offset (0.1 gauss resolution)

Probe (non-detachable): 1.5 (thick) x 4.3 x 24 mm

Meter Size: 5.2 x 3.6 x 1.6 inches; 132 x 91 x 41 mm

Weight: 8 oz

Battery: 9 volt alkaline (~ 40 hour life) / “Low Battery” indicator
