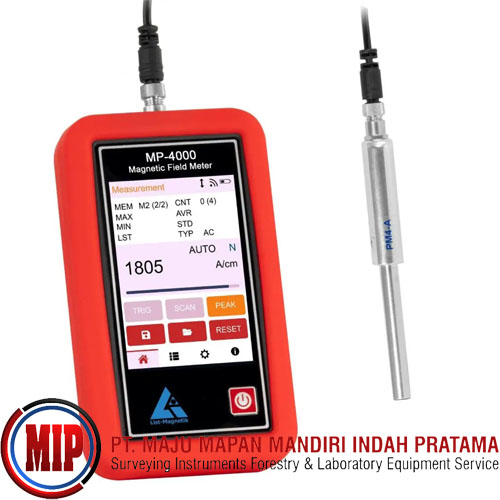

LIST MAGNETIK LM-MP4000-4A Gauss Meter/ Tesla Meter
Rp. 95,000,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Experience the revolution in measurement technology with the Gauss Meter / Tesla Meter. This device belongs to the new generation of powerful magnetic field measuring devices and uses external digital axial and transverse field probes to carry out precise magnetic field measurements of DC and AC magnetic fields as well as pulsed fields of all kinds.
It is ideally suited as a digital gaussmeter, magnetometer or tesla meter for recording and analyzing magnetic field strength, magnetic field intensity and magnetic flux density. The highly sensitive magnetic field sensors and magnetic field sensors ensure reliable magnetic measurement.
The application range of this Gauss Meter / Tesla Meter extends from weak geomagnetic fields to strong fields with field strengths of 40,000 A/cm. This makes it ideal for a wide range of applications in industrial magnetic field measurement, magnetic field measurement, magnetic field analysis, magnetic flux measurement, magnetic field line analysis and a wide variety of magnetic field test procedures.
The Gauss Meter / Tesla Meter provides you with professional magnetic field measurement solutions at the highest level that are developed and manufactured in Germany for users.
The Gauss Meter / Tesla Meter has a graphic LCD touch panel with innovative user guidance and a resolution of 320x480 pixels. As a highly developed digital Gauss Meter / Tesla Meter and part of modern magnetic field measuring devices, it offers functions that go far beyond classic magnetic field measurement.
An outstanding feature of the new probe electronics is the fast digitization of the measured values at a frequency of up to 200 kHz. This enables precise magnetic measurement and the display of pulse curves with a duration of just 0.1 milliseconds. This makes it ideal for analyzing magnetic fields and precisely recording magnetic field intensity and field strength in pulse fields.
General technical data
Measuring functions MIN, MAX, Average value, Quantity, Standard deviation
Units A/cm, g, Oersted, T
Units additional information Units switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
Display type LCD touchscreen
Storage capacity 10000 Measurements
Memory capacity (additional information) Measuring memory can be flexibly divided, peak value memory: with pulse time >= 0.1 msec
Interface Wireless, USB
Sensor additional information Axial field probe PM4-A
Measuring distance Hall sensor: 2.0 mm
Total length of the probe: 125 mm
Length of the probe handle: 65 mm
Probe diameter: 8.6 mm
The axial field probe measures the field in the direction of the probe tube
Operating time 25 h
Menu language German, English (GB), English, French, Italian, Spanish
Power supply
1.5V AA battery or 5V (USB)
(Rechargeable) battery 3 x 1.5V AA battery, Alkali-manganese
Capacity 3000 mAh
Dimensions ( L x W x H ) 150 x 85 x 35 mm / 5.9 × 3.3 × 1.4 in
Weight 320 g / 0.71 lb
Delivery Scope
1 x MP-4000 Gauss Meter / Tesla Meter
1 x PM4-A axial field probe
1 x Probe cable
1 x Case
1 x Calibration certificate
