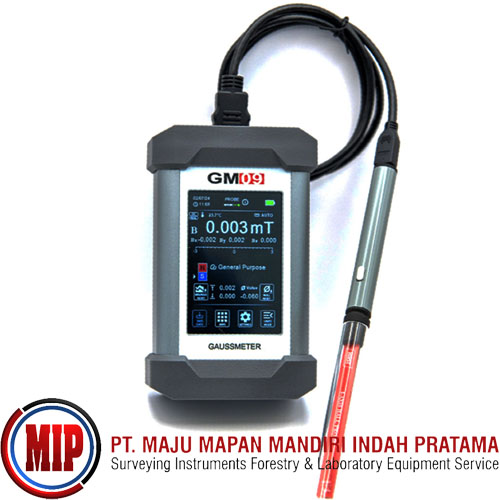

HIRST GM09-3 Gaussmeter with Three-Axis Probe
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The GM09-3 gaussmeter features a touch-screen interface and rechargeable Li-ion battery for use with the Hirst three-axis Hall sensor probe. The built-in Application “App” modes ensure standard tests and measurements can be carried out with ease and minimal effort. Data-logging features allow the retrieval of data using a simple USB interface, no additional software is needed as the GM09 appears as a USB mass storage device.
Key features are
A hand-held touch-screen general purpose gaussmeter (for determining magnetic field strength) with a range of built in application modes to make routine testing more user-friendly.
GM09-3 appears as a USB mass storage device when connected to a computer or device and no software is needed to access the stored (time stamped data) in standard .CSV file formats.
Display of magnetic field in cartesian coordinates (Bx, By, Bz and B) or polar coordinates (B, θ, Φ)
Application modes include (dependant on probes used):
Magnet testing - pass/ fail within user defined bands with polarity.
Magnetic Field testing – for standard and stringent safety levels or user defined pass / fail criteria.
Residual magnetism testing – for standard levels or user defined pass / fail criteria.
Food Magnet Extractor testing with standard settings (8, 10, 12 kG) plus user defined pass / fail criteria.
Occupational safety mode testing based on 1998 ICNIRP guidelines with DC testing using standard probes and AC testing for AC fields 3Hz up to 350Hz.
Rechargeable Lithium-ion battery with USB-C compatible charging (wall-plug or computer charging)
Easy to operate 3.5” multi-colour touch screen 320x480 px with backlight.
Intuitive easy to use menus with on-screen help and a dedicated knowledge base support website.
The GM09-3 kit contains:-
GM09-3 (Three Axis).
Three axis probe – 3DHS-1 (calibrated).
GM09-3 Calibration certificate.
Zero flux chamber.
USB-C charging / computer connection cable.
Carry case.
