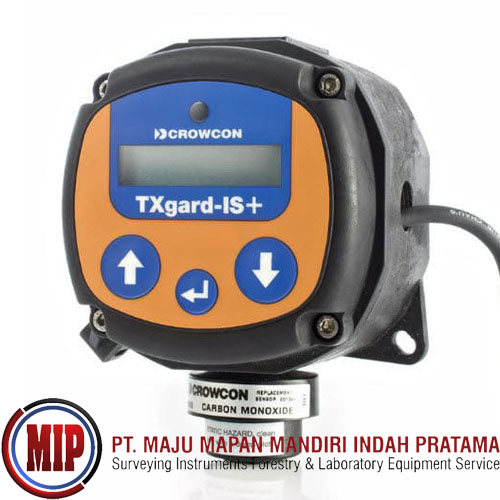

CROWCON TXgard IS Plus Single Gas Leak Detector

Rp. 55,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

TXgard-IS+ is a Intrinsically Safe (I.S.) toxic and oxygen gas detector with local LCD display. A very wide choice of sensors are available for use in a variety of applications. TXgard-IS+ is ATEX certified for use in Zone 0,1 or 2 hazardous areas and also UL and cUL certified for use in Division 1 or 2 hazardous areas.

Non-intrusive calibration

Calibration can be performed locally without the need for hot work permits – minimises operational down-time

Local display and buttons enable calibration without opening the junction box

Flexible output options

4-20mA current sink – works with a wide selection of control panels

2 wire format

Rugged and reliable

Made from tough carbon loaded nylon

Ingress protection to IP65 as standard

Low cost of ownership

Non-intrusive one man calibration – easy to operate and maintain

Long life sensors – keeps interuption to on-site activity to a minimum

Simple parts replacement

Wide range of sensors

Extensive range of electrochemical sensors for toxic gases and oxygen

Specifications

Size 160 x 123 x 92mm

(6.3 x 4.8 x 4.5ins)

Weight 0.7kg (1.5lbs)

Ingress protection IP65

Enclosure material Junction box: Carbon loaded nylon

Sensor housing: ABD Plastic

Power 8-32Vdc, 4-20mA loop-powered

Cable entries 1 x M20 or 1/2” NPT with adaptor

Operating temperature -20°C to +55°C (-4°F to 132°F) *

Humidity 15 to 90% RH non-condensing

Display 2-Line, 16 character LCD

Calibration method Via push-buttons

Electrical output 2 wire 4-20mA sink

Terminals Suitable for up to 2.5mm2 cable

Sensor type Electrochemical

Repeatability +/- 2% FSD typically

Zero drift +/- 2% FSD, 6 months typically

Response time Contact Crowcon for a full list of sensor response times

Performance Tested in accordance with EN60079-29-1

Hazardous area zones Zone 0, 1 or 2

Division 1 or 2

(when connected via an isolation device)

Approvals Ex II 1 G Ex ia IIC T4 (-40°C to +65°C)

Exia IIC T4 Gb Tamb -20°C to +55°C

UL Class I, groups A, B, C and D

EMC compliance EN 50270, FCC: CFR 47 Part 15, ICES-003
