NOVOTEST UD-2301 (New) Portable Ultrasonic Flaw Detector

Ultrasonic Flaw Detector NOVOTEST UD2301 is designed to detect defects, such as continuity and uniformity of materials in products and welded joints, to measure the depth and position of their occurrence, thickness measurements, measurements of velocity and attenuation of ultrasonic waves (ultrasonic) in the material.

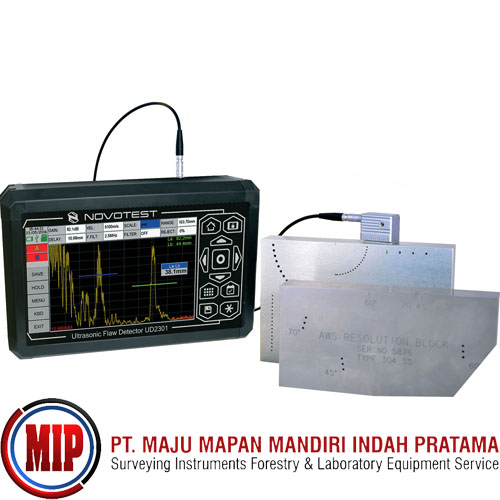

Ultrasonic Flaw Detector NOVOTEST UD2301 with large touch screen display is the best choice for expert ultrasonic testing. Powerful, lightweight and portable, the ergonomic impact-resistant metal casing. The flaw detector UD2301 allows to measure the thickness of the product with great accuracy, the signal to be in the form of A-and B-scans and has all the features of the full documentation of control.

Detailed specifications of Ultrasonic Flaw Detector NOVOTEST UD2301
Range
min .: 0 - 6 μs
max .: 0 - 1000 μs
step - 25 ns
   Display shift (delay)
from 0 μs to 1000 μs
step -  25 ns
   MAX length of tested material up to 6000 mm (echo mode) for steel
   Velocity range 1000 - 9999 m/s
   Delay in the prism
0 - 100 μs
step -  25 ns
   Damping 50 Ohm
   Input impedance 50 Ohm / 600 Ohm
   Pulsev mode
RF pulse with amplitude of 100, 200 or 300V,
With variable length from 25 to 500 ns,
step -  25 ns
   PRF automatically optimized from 10 to 100Hz
   Analog bandwidth wideband 0.4-20 MHz (-6 dB)
   Gain control range 125 dB, step - 0,5 dB
   Time control gain (TCG)
range up to 70 dB, 12 dB / μs
   Amplitude-Distance Curve
(DAC)
with the construction of the curve through 16 reference
points,
entered by hand or by the control reflectors
drawing through 16 points, height adjustable
   Zone control (gates)
two independents areas, the beginning and width are change
at all scan range; levels of limits are set from 0 to 100% of
display height; individual logic of detection defects.
   Detection
positive or negative half-wave, complete, the radio signal (at
all range of scan), B-scan
   Cutoff compensated, 0 - 90% of screen height
   Automatic Alarm of defects
light logic of detection defect in zone for each zone individu-
ally and sound individual logic detection defect at the zone
   Time intervals measurement
from 0 to a first signal in the zone or between
signals in the zones to the front or to the maximum signal
   Measurement of amplitude
in dB relative to threshold level in the zone;
in dB relative to the reference signal;
in dB relative to the amplitude-distance curve
   Display 7” touch screen, 155x85 mm
   Memory limited of SD cards capacity
   Interface USB, Bluetooth (optional)
   Connectors of probes 2 Lemo
   Battery Li-Ion 12 a/h
   Battery life up to 10 hours
   External power supply 220V, 50Hz AC
   Supply voltage 5V
   Operating temperature range from -30 °C to + 55 °C
   Dimensions (H x W x L) 50x150x250 mm
   Weight 1.1 kg

Include:
Ultrasonic flaw detector
UT-probes – 2 pcs
Cable Lemo-Lemo – 1 pc
AA batteries – 3 pcs
Charger
USB cable for PC connection
Operating manual
Case
