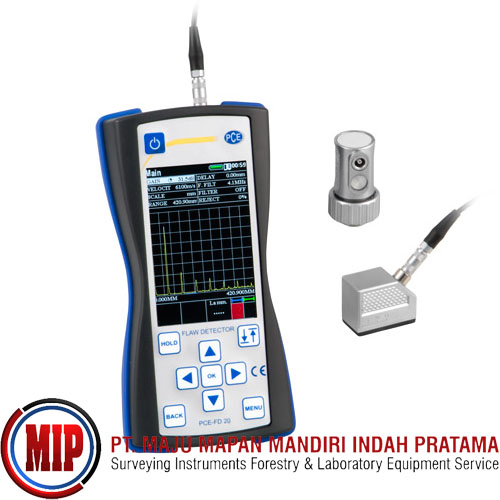

PCE FD20 Ultrasonic Flaw Detector

Rp. 165,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

PCE-FD 20 is a portable ultrasonic flaw detector with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based defectoscope uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.

Features:
- Operating frequency range: 1 ... 10 MHz
- Measured time interval range: 6 ... 1000 microseconds (µs)
- Sound velocity: 1000 ... 9999 m/s
- Implements shadow, echo and mirror-shadow testing methods
- Features a USB interface for downloading data to PC for detailed analysis
- Lightweight
- Battery or electric power
- 1.5 m long probe cable

Complette Package:
1 x PCE-FD 20 flaw detector
1 x probe cable (1.5 m long)
1 x contact transducer probe (90 °)
1 x contact transducer probe (45 °)
3 x 1.5 V batteries (AA)
1 x battery charger / electric power supply
1 x USB cable
1 x user manual
