PROCEQ Advanced Ultrasonic Flaw Detector 100
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

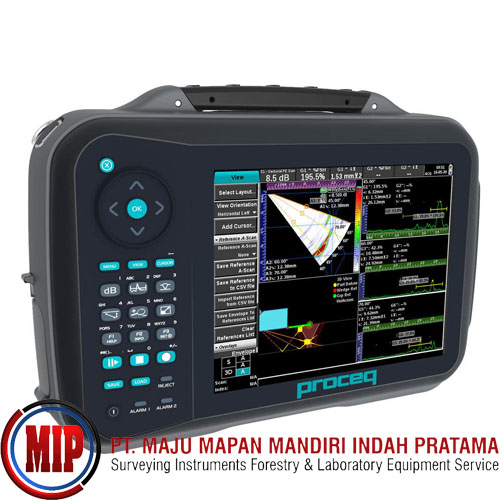

The Proceq Flaw Detector 100 is a flexible high tech ultrasonic inspection instrument. The basic UT model can be upgraded with the Ultrasonic Time of Flight Diffraction (TOFD) and Phased Array (PA) modes anytime and anywhere on-site.
The instrument offers technicians an extremely comprehensive measurement solution and features all popular flaw sizing techniques such as DGS/AVG, DAC, TCG and AWS. Thanks to the A, B, C, True Top and End scans imaging capabilities, users can perform many applications.
Protected by a rugged IP 66 cover, the inner life of the instrument brings the user many benefits: For example the 3D scan plans which help to create inspection procedures and to analyze the results. Settings can be saved and re-used, the wizards and option specific help allow fast configuration.
Another great function of the device is to bring down the bandwidth to 200 kHz for testing attenuative materials. Furthermore, the 450 volts delivered to the probe allow the user to actually "see" more on the screen. Sensitive amplifiers can make TOFD inspections possible without preamp and all models have 2 axis encoding.
Our customers benefit from Proceq’s established high service quality: Fast reaction, excellent service and local support covering many languages.
Features
Click wheel for fast navigation
Grouped options for easy setup, measurement and analysis
Shortcut keys for easy access to common options
Context sensitive help
Customizable screen with selectable layouts
