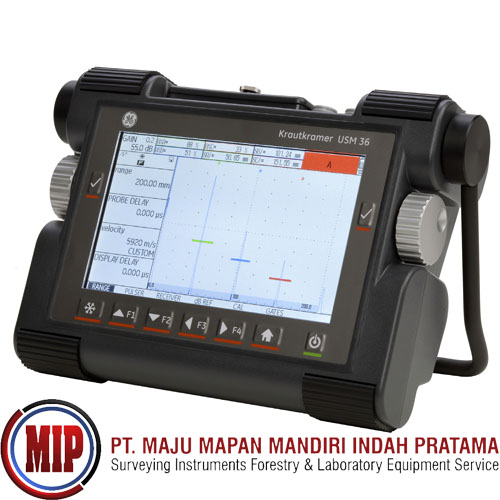

Waygate Krautkramer USM 36 DAC Package Ultrasonic Flaw Detector

GE Inspection Technologies USM 36 Ultrasonic Flaw Detector combines ergonomic and robust design and the biggest display screen of its class with state-of-the-art UT performance. It incorporates a range of innovative features to ensure that this new instrument is adopted as the everyday workhorse of flaw detectors by NDT inspectors globally.

The Krautkramer USM 36 features a 7 inch LCD display with a of 800x480 pixel resolution. Signals can be easily viewed and accurately interpreted. The Krautkramer USM 36 uses the familiar rotary knobs of previous models but the function keys have now been minimized into a simple, intuitive 6-key keyboard, allowing simple and efficient operation.

Applications for the Krautkramer USM 36 include:
Weld inspections in the power generation and petrochemical industries
Precise thickness measurement in the automotive industry
Corrosion measurement in the power generation
Inspection of forging
Inspection of special materials

Standard package Only available for lemo connector with DAC package
DAC package: Adds DAC & square wave pulser to standard package
S package: Adds DGS, phantom echo, gate C, & data logger to DAC

Features
7 inch LCD display, 800 x 480 resolution
More than 13 hrs of battery life
Pulser (EN12668 specifications):
Spike model;
120 to 300V
30 to 100 ns
SQ model;
120 to 300V, steps of 10V
30 to 500 ns, steps of 10 ns
50 to 1000 ohms damping
Color Leg Indicator in “live” A-Scan for Angle Beam Inspections
Intuitive 6 key keyboard
IP66 rated
Data can be stored on removable SD-card or USB memory stick
