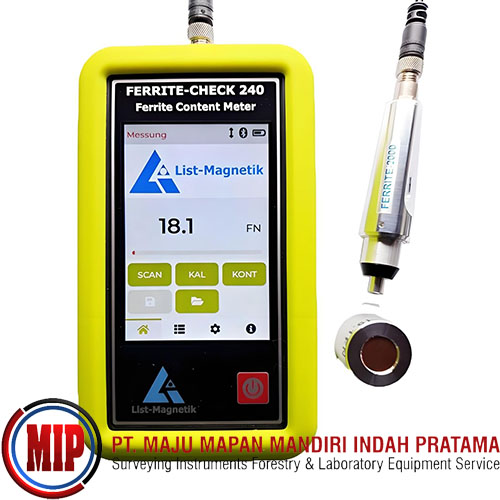

LIST-MAGNETIK Ferrite-Check 240 Ferrite Content Meter

Rp. 168,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The List-Magnetik Ferrite-Check 240 ferrite content meter is a user-friendly device featuring a color display and an external probe designed for measuring ferrite content in austenitic and duplex steels in accordance with DIN EN ISO 8249, utilizing the magnetic induction method.

Features
High Sampling Rate for maximal accuracy (5%)
Bluetooth connectivity for Windows and mobiles devices; Application available for Android and iOS
25 hr battery (3AA batteries) or external power sources options
SCPI interface
Mark measure points on the material in images for record-keeping via the the Lima Connect app
Scan Mode option to detect welds on smooth, polished surfaces
Measurements are possible in FN and Fe%
Measures in accordance with DIN EN ISO 8249 using the magnetic induction method
Probe cable can be plugged in at both ends and is easily replaceable

Software
To further process your measurement data, you can pair your measuring device with mobile Android and iOS device, or to Windows PC or Laptop. All connections made via Bluetooth.

Once connected, you can manage projects and even assign measuring points on a photo for documentation of inspection.

Applications
The Ferrite-Check 240 is optimized for measurement of ferrite content in austenitic and duplex steels. Common applications include:

Pre-Weld Inspections
Detection of ferrite content distribution along a weld seam
Determination of the proportion of deformation martensite in austenitic materials
Determination of delta ferrite content in austenitic and duplex steels

Kit Includes
Ferrite-Check 240 Unit
Ferrite-3000 Probe
3 Calibration Standards
1 FN 140
1 ~FN 16
1 ~6
USB Bluetooth Receiver
Case
Calibration Certificate
