PCE CSM21 Portable Spectrophotometer
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

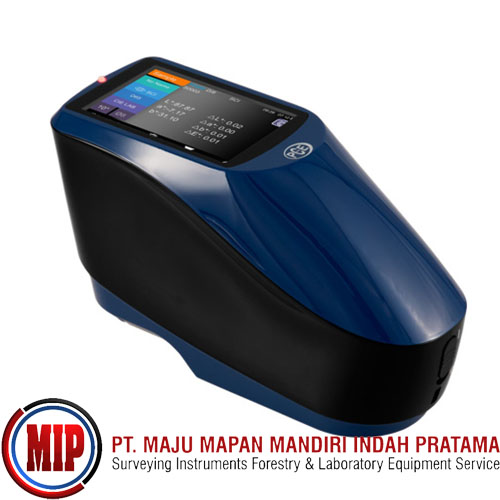

Spectrophotometer PCE-CSM 21High-quality spectrophotometer / Custom aperture size / Pass or Fail delta display / Evaluation via SW over Bluetooth or USB / 9-color LED as light source.
PCE-CSM 21 is a handheld spectrophotometer used for high-quality color measurement. Featuring a custom 4 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the PCE-CSM 21 offers a long battery life, a 9-color lamp and an easy-to-use portable design. The PCE-CSM 21 covers the full spectrum from 400 to 700 nm in 10 nm increments. The powerful battery allows up to 5000 daily measurements. The software supports both SCI and SCE spectral measurements at once. The unit features a 3.5 inch TFT color touch screen and a 256 image element CMOS image array for superior usability and accuracy. Camera/illumination locating for small samples.
The high-quality processing of the spectrometer is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Six color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via Bluetooth or USB. Sophisticated analysis software is also included in the delivery contents that includes the USB cable.
Features:
Long battery life
USB cable for data transfer to included software
Portable for ease of use
Reference memory of 2000 colors, storage for 20,000 samples
Includes white and black calibration standards
High measuring accuracy and stability with 9 illumination choices
Single and average measurements with delta pass/fail display
Spectrophotometer measures from 400 to 700 nm in 10 nm increments
Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
What's In The Box:
(1) Spectrophotometer PCE-CSM 21
(1) Li-Ion battery (installed)
(1) Calibration standard (white and black)
(1) AC Charging adapter
(1) Dust cover
(1) USB cable
(1) Factory calibration certificate
(1) CD-Rom with software
(1) Cleaning cloth
(1) User manual
(1) Aluminum carry case
