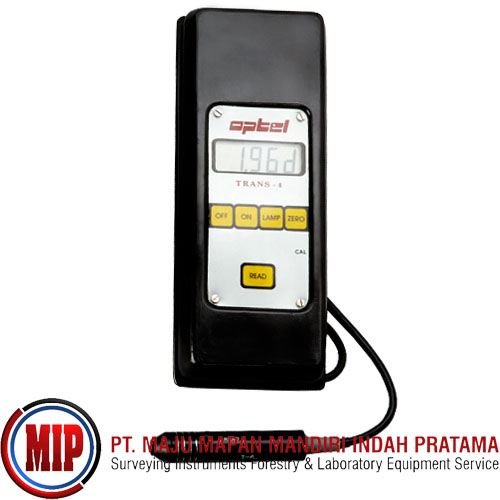

OPTEL TRANS-4E Portable Densitometer

Rp. 45,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Trans-4V is a battery operated hand-held black and white transmission Densitometerwith build-in light source. It has achieved the accuracy and stability not so far offered in portable / field instruments. It’s size and shape makes it an ideal portable instrument for use laboratory.

The Trans-4V has its own light source and Trans-4E has an external sensor with 1 meter cable. It is used with an external light source, like a film viewer. Keypad controls for POWER, LAMP, ZERO and READ to set zero. Insert film and press Read to get optical density D. These easy to use compact instruments measure optical density of films mostly used for X-Ray films and printing / photography films. Trans-4 has a range of 0 to 4 D with accuracy of ± 0.01 D.

Technical Details

Trans-4V Trans-4(E)

Application Areas Measure optical density of::

X-Ray films for Radiography

Metallised films

Plastic films

Colour Response Black & White only

Light Source Built-in Needs external light source such as a film viewer

Range 0.00D to 4.00D

Measuring Length (throat depth) 150 mm NA

Accuracy Better than ± 0.02 D

Zero Stability ±0.02 D per 8 hours max

Operating Temperature 10° C to 50° C

Battery Rechargeable NICD battery giving ~2000 readings 4 Penlite Cells

Dimensions L x W x D(in mm) 190 x 78 x 55 190 x 78 x 55 + External Probe

What's in the Box:

(1) small screw driver

(1) Carrying case

(1) Operating

(1) Set of batteries (incorporated in the unit)
