SYQWEST StrataBox HD Marine Geophysical Instruments

Rp. 550,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Marine Geophysical Instrument

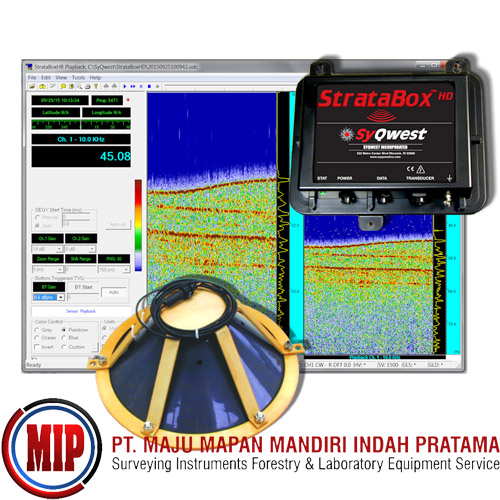

The StrataBox HD TM is a portable high- resolution marine sediment imaging instrument capable of delivering 6 cm of marine sediment strata resolution with bottom penetration of up to 40 meters. It is designed exclusively for inshore and coastal geophysical marine survey up to 150 meters of water depth.

Features

Strata Resolution: 6 cm with up to 40 meters bottom penetration.

Depth Accuracy: ± 0.5%

Geographic Position Input, NMEA Compatible

Data Storage and Playback

Zoom Modes

Event Marks

Portable or Bulkhead Installation

10-30 VDC Input Power

Windows 7/8/10 Compatible

StrataBox HD Specifications

Units: Feet or Meters

Depth Range: 0-15, 0-30, 0-60, 0-120, 0-240, 0-450 Feet.

0- 5, 0-10, 0-20, 0- 40, 0- 80, 0-150 Meters.

Millisecond range-scale available in either Feet or Meters.

Auto-ranging Modes in all units.

Shift Range: 0-450 feet in 1 foot increments ,

0-150 meters in 1 meter increments

Zoom Range: 15, 30, 60, 120, 240 feet

5, 10, 20, 40, 80 meters

Zoom Modes: Bottom Zoom, Bottom Lock, Marker Zoom, GUI Zoom (Playback Only)

Display: Normal Data, Zoom Data, Selectable Color Palette

Strata Resolution: 6 cm with up to 40 Meters bottom penetration.

Depth Resolution: 0.1 foot, 0.1 meters.

Depth Accuracy: 0.5%

Speed of Sound: 1500 Meters/Second or 4800 Feet/Second.

Geographic Position: NMEA 0183, GLL, GGA, RMC, VTG, VHW, HDT.

Selectable Baud Rate, RS-232. COM2

Data Input: Ethernet via RJ-45

Printer Output: Centronics (Parallel Port) interface to TDU Series Thermal Printers.

Shallow Water Operation: < 2.5 meters; bottom type dependent

Transmit Rate: Up to 10 Hz, depth and operator mode dependent.

Event Marks: Manual or Periodic (selectable in 1 minute intervals)

Data File Output: Saves Depth, Navigation, and Graphic Data in ODC format (Proprietary).

Normal Data and Zoom Data stored is Pixel Data and can be played back and printed.

Data File Playback: Files played back and printed at Normal or Rapid Advance Speed, with Pause and GUI Zoom available.

Frequency Output: 10 kHz

Transmit Output Power: 300 Watts (Pulsed), 1000 Watts capable.

Input Power: 10-30 Volts DC, Nominal Power 8 watts,

Reverse Polarity and Over Voltage Protected.

Dimensions: 25.4 cm (10") Length, 22.86 cm (9.0") Width, and 6.25 cm ( 2.5") Height. (see below)

Weight: 1.1 kg (2.4lbs)

Environmental: -25(C to +60(C Operating Temperature (-55(C to +90(C Storage)

Water Resistant to EN60529 IP65

EMC meets EN60945 Emissions ; CE Compliant
