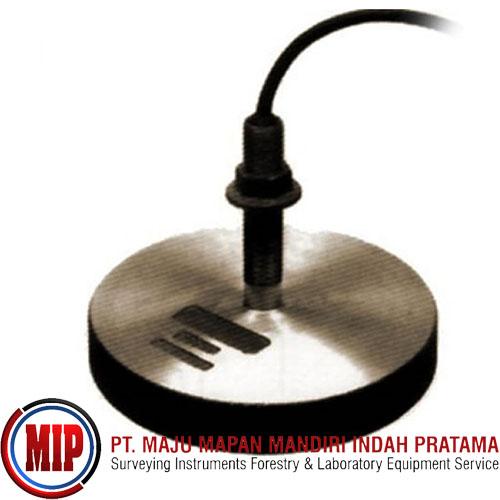

SYQWEST P02560 200kHz Stainless Steel Housing Transducer

Rp. 75,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The narrow beam of this transducer makes it ideal for high resolution, hydrographic surveys. It can be mounted: through the hull, in a sea chest, or on an over the side pole. Complete sea chests assemblies, sea chest drawing packages, acoustic windows, and pole mount assemblies are available from SyQwest.

Features:
Low sidelobes for accurate bottom detection
Threaded stem for easy mounting
Internal transformer allows correct impedance match to echosounder
Housing grounded via capacitor, providing static shielding
Designed to meet CE requirements
3 degree beamwidth
Portable/ pipe mount
Frequency 200kHz
Housing and nut material: Bronze
Standard cable lenght: 9m (30")
Standard cable type: C- 33 shiedled twisted pair (2-18 AWG) with braided shield, black neoprene jacket, 6mm (17/64") diameter
Weight: 3.4kg (7.5 lbs)
Diameter: 18.4cm (7.25")
Height: 13.1cm (5.16") allow 7.6cm (3") service loop for cable.

What's In The Box:
(1) SyQwest P02560 200kHz (3 degree) Stainless Steel Housing Transducer
(1) Operator Manual
