SYQWEST Bathy 1500C High Precission Hydrographic Echosounder

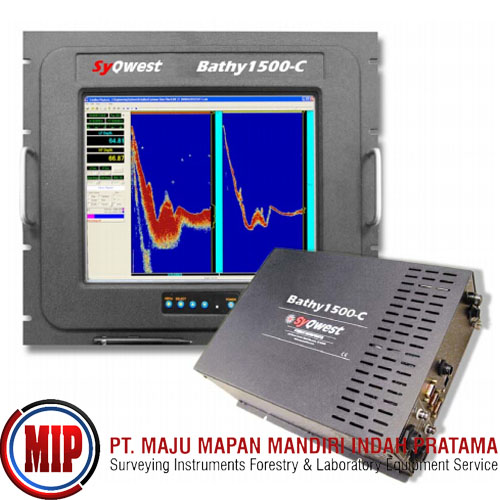

The Bathy-1500CTM is a portable high-resolution, precision echo sounder. It is designed exclusively for hydrographic marine surveys up to 5,000 meters of water depth. Available as a single frequency or dual frequency model.



Features

Centimeter Resolution

GPS Input, NMEA Compatible

Hypack & HydroPro Compatible

Data Storage & Playback

Zoom Modes

Even Marks

Single or Dual Frequency

Sound Velocity

Draft Offset



Bathy-1500C Specifications

Units: Feet or Meters

Depth Ranges: 30, 60, 120, 240, 480, 800, 1500, 2400, 3000, 6000, 15000 Feet

10, 20, 40, 80, 150, 300, 500, 750, 1000, 2000, 5000 Meters

Auto-ranging Modes in all units.

Shift Range: 0-450ft in 1 foot increments, 0-150m in 1 meter increments

Zoom Range: 115, 30, 60, 120, 240, 480 Feet

5, 10, 20, 40, 80, 160 Meters

Zoom Modes: Bottom Zoom, Bottom Lock Zoom, Marker Zoom, Normal Data, Zoom Data, Navigation, Depth

Display: Command/Status, Color Control for Data: 4 Selections or Custom (User Input), Data Color Invert possible

Depth Resolution: 0.1 Feet, .0.1 Meters

Depth Accuracy: Meets or exceeds all current IHO hydrographic requirements for single beam echo sounders

0-40m 2.5cm, 40-200m 5.0cm, >200m 10.0cm: or +/- .1% of depth corrected for sound velocity

Speed of Sound: User Selectable 1500 Meters/Second, 4800 Feet/Second; Adjustable in increments of 1m/sec or 1ft/sec; Auto

Geographic Position: NMEA 0183, GLL GA, RMC, VTG, VHW, HDT

Selectable Baud Rates (RS-232) 4800, 9600, 19200, 38400

Printer Output: Interface to TDU Series Thermal Printers

Shallow Water Operation: <1 Meter; bottom type dependent

Transmit Rate: Up to 20Hz, depth and operator mode dependent

Event Marks: Periodic, External, and/or Manual

(Periodic selectable in 1 minute intervals)

Data File Output: Stores Depth, Navigation, and Graphic Data in ODC format (Proprietary) and Standard SEG-Y Normal and Zoom Data stored in Pixel data and can be played back and/or printed.

Data File Playback: Files can be played back and/or printed at Normal or Fast-Forward speed, with Pause and Zoom and a Playback Scroll Bar for ease of file playback.

Frequency Output: 3.5 to 340 kHz

Transmit Output Power: 2kw (Pulsed) (Maximum)

Input Power: 10-30 Volts DC, Nominal power 75 Watts (sensor), 110/220 VAC Optional

Dimensions: Sonar Processor: 35.56cm (14") Depth, 27.9 (11.0") Width, and 10.16cm (4.0") Height.

Display: 44.4cm (17.5") width, 33.6cm (13.25") height, and 14.4cm (5.7") depth

Weight: Sonar Processor: 4kg (9lbs). (sensor unit only)

15" LCD Display: 15kg (33lbs) 19" LCD (optional)

Environmental: 0 to 50 degrees C Operating Temperature 0 to 95 degrees non-condensing
