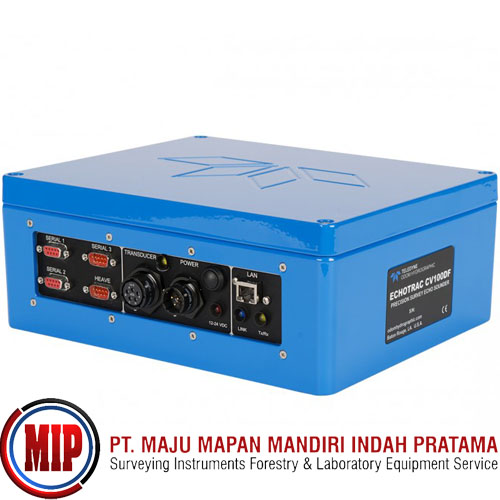

TELEDYNE Odom Echotrac CV100-DF Dual Frequency Echosounder

Move  into  the  digital  age  with  echo  sounders  from  Teledyne  Odom Hydrographic. If your survey does not require traditional paper records, then forget about piles of hard copy – the CV-100 has eliminated all that in favor of digital imaging on a PC-based  data acquisition system. With  the  same  technology  as  the  popular  Echotrac  CV  and  Echotrac  MKIII,  including  Ethernet  communications,  Teledyne  Odom’s CV100 single or dual channel sounder is ready to sim-plify your transition to the convenience of an all-digital system.

Features:
Multiple time varied gain (TVG) curves (10, 20, 30, and 40 log)
DSP digitizer with manual filter control
Manual or auto scale changes (phasing)
Calibration menu with controls for transducer draft and index
plus sound velocity and bar depth controls
Rugged and waterproof (IP65)
Help menus
Flash memory upgradeable
Auto Gain and Auto Power Modes for minimal operator input
Suitable for autonomous vessels

What's in the Box:
(1) Teledyne ODOM ECHOTRAC CV100DF Dual Frequency with 100kHz to 750kHz and 24kHz to 50kHz Frequency
(1) Odom E-Chart (Windows compatible control & display software
(1) DC power cable (12 to 24VDC),
(2) Serial interface cables
(1) Ethernet Cross-over cable
(1) Transit Case
User Manual

Specifications:
Single Channel Configuration1 High: 100kHz-750kHz (manual tuning in 1-kHz steps)
Low: 3.5kHz-50kHz (manual tuning in 1-kHz steps) variable receiver bandwidth
Dual Channel Configuration High: 100 kHz-340kHz
Low: 24 kHz-50kHz
Resolution: 0.01m, 0.1 ft.
Accuracy (corrected for sound velocity) 200kHz-0.01 m +/- 0.1% depth; 33kHz-0.10 m +/- 0.1% depth
Output Power: Up to 300 watts RMS < 1 watt minimum
Ping Rate: Up to 20Hz in shallow water (10m) range
Depth Range From: <30cm to 600m (depending on frequency and transducer selected)
Input Power Requirement:  9-32VDC < 15 watts
Weight:  5kg (11lbs)
Dimensions:  28cm W (11 in) x 23cm H (9 in) x 11.5cm (4.5 in) D
Mounting:  Desktop or bulkhead mount (fixing hardware included)
Ports/Interface Ethernet: (LAN) plus; 4 x RS232 or 3 x 232 and 1 x RS422; Inputs from external computer, motion sensor, sound velocity; Outputs to external computer or remote display; Output string: Odom Echotrac SBT, NMEA DBS, NMEA DBT, DESO 25; Heave Input-TSS1 or “Sounder Sentence”; Echotrac Control SW - Simple Windows compatible graphical user interface; Storage of full ping to seabed data in DSO format with e-Chart (easily compressed or converted to .XTF for additional processing)
Environmental: Operating 0-50°C; Storage -20°-70°C
Options:  Heave Sensor
Software Control & Logging Software Windows based software included: eChart Display
