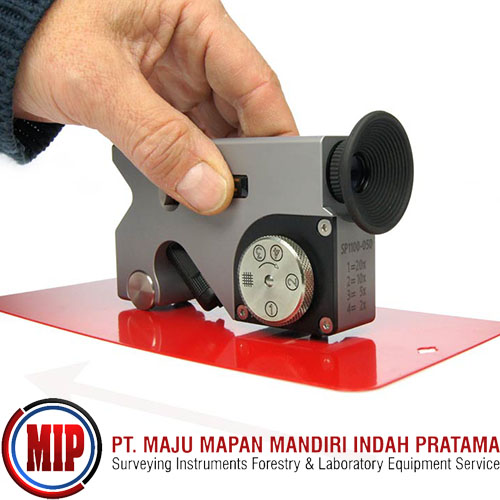

TQC SHEEN SP1100 SuperPIG III Paint Inspection Gauge

Description
Developed by TQC Sheen, our paint testing specialist brand, the SuperPIG Paint Inspection Gauge III is a highly accurate coating thickness gauge that also observes and measures substrate and film defects.

Paint thickness has a huge impact on performance, appearance and application. It can also be a key part of making sure that a coating meets industry standards, so it’s essential you test and inspect and get to know exactly what you’re dealing with.

A robust and reliable paint coating thickness gauge
The SuperPIG III is built using titanium anodised aluminum. It offers three cutter sizes and one crosscut knife in one holder. Our paint thickness gauge comes with a double scale that allows you to observe and calculate both micrometers and mils.

Coating thickness gauge ease of use
After creating a small incision in the layer of paint with the SuperPIG’s cutter, one uses the integrated 50x enlarging microscope and built in reticule to assess it.

The high-end microscope and LED illumination as used in the SuperPIG III ensure well illuminated and clear observations for the best coating thickness evaluation.

Space saving paint inspection
The SuperPIG III has a compact, space saving and ergonomic design. It features a smart revolving system that enables a simple and fast swap out cutters for faster testing.

Features & Benefits
Made of titanium anodised aluminum
Three cutter sizes and one crosscut knife (optional) in one holder
Ergonomic paint inspection design: smart revolving system to easily change cutters
Bright white LED lights ensures clear vision through the microscope
Small size eases use in corners
Engraved D-factor scaling for easy calculations
Rubber protective eye cup

Specifications
SKU: SP1100
Applications: Thickness Testing
Materials: Inks and Coatings
Paint inspection range: 2 to 1800 microns / 0,1 to 70 mils
Microscope: magnification 50X (with graduation-scale)
Paint thickness gauge scale range: 0,00 – 1,8 mm / 0,00 – 0,07 inch (Rectilinear measured)
Accuracy: Depends on chisel cut angle and users reading
Battery: 4 x AG13/LR44
Material: titanium anodised aluminum
Width: 25mm
Height: 110mm
Length: 65mm
Cutters:   SP1111 cutter no. 1, 20-1800μm / 1-70 mils, SP1112 cutter no. 2, 10-900μm / 0.5-35 mils, SP1113 cutter no. 3, 5-450μm / 0.25-17.5 mils, SP1114 cutter no. 4, 2-180 μm / 0.1-7 mils
Cross cut knife acc. to DIN-ISO 2409, ASTM D3359, 6 teeth: SP1702 teeth distance 1mm, SP1703 teeth distance 2mm, SP1704 teeth distance 3mm
Cross cut knife acc. to ASTM D3359 <2009, 11 teeth: SP1705 teeth distance 1mm, SP1706 teeth distance 1,5mm

Scope of supply:
Knives 1, 2 and 4
Allen key for cutter replacement
A black leather case with belt clip
A black marker
