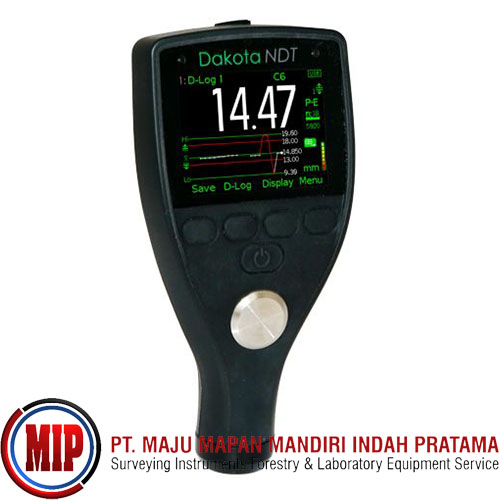

DAKOTA NDT CX6-DL Coating Thickness Gauge

Rp. 68,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Dakota NDT CX Series Ultrasonic Material Thickness Gauge. The Dakota CX Ultrasonic Material Thickness Gauges have all the features and functionality necessary for measuring material thickness and velocity on virtually any material - for a wide range of applications.

Specification:
Measurement Range1:
Pulse Echo (PE):
CX2: 0.63 - 500mm (0.025 - 19.999”)
CX4: 0.63 - 500mm (0.025 - 19.999”)
CX6-DL: 0.63 - 500mm (0.025 - 19.999”)
CX8-DL: 0.63 - 500mm (0.025 - 19.999”)
Echo Echo ThruPaint™ (EE):
CX2: 2.54 - 20.00mm (0.100-0.787”)
CX4: 2.54 - 20.00mm (0.100-0.787”)
CX6-DL: 2.54 - 20.00mm (0.100-0.787”)
CX8-DL: 2.54 - 20.00mm (0.100-0.787”)
Velocity Mode (VM):
CX2: 1,250-10,000m/s (0.0492 - 0.3937in/μs)
CX4: 1,250-10,000m/s (0.0492 - 0.3937in/μs)
CX6-DL: 1,250-10,000m/s (0.0492 - 0.3937in/μs)
CX8-DL: 1,250-10,000m/s (0.0492 - 0.3937in/μs)
Measurement Accuracy2:
Pulse Echo (PE):
CX2: ±0.1mm (0.63-19.99mm), ±0.5% (20.00-500.00mm)
CX4: ±0.1mm (0.63-19.99mm), ±0.5% (20.00-500.00mm)
CX6-DL: ±0.05mm (0.63-9.99mm), ±0.5% (10.00-500.00mm), ±0.004” (0.025-0.393”), ±0.5% (0.394-20.00”)
CX8-DL: ±0.05mm (0.63-9.99mm), ±0.5% (10.00-500.00mm), ±0.004” (0.025-0.393”), ±0.5% (0.394-20.00”)
Echo Echo ThruPaint™ (EE):
CX2: ±0.1mm (2.54-25.4mm)
CX4: ±0.1mm (2.54-25.4mm)
CX6-DL: ±0.05mm (2.54-9.99mm), ±0.5% (10.00-20.00mm), ±0.004” (0.100-0.393”), ±0.5% (0.394-0.787”)
CX8-DL: ±0.05mm (2.54-9.99mm), ±0.5% (10.00-20.00mm), ±0.004” (0.100-0.393”), ±0.5% (0.394-0.787”)
Operating Temperature: -10 to 50°C (14 to 122°F)
Power Supply: 2 x AA batteries
Battery Life3: Alkaline: 15 hours Lithium: 28 hours
Gauge Weight: 210g (7.4oz) - including batteries, without transducer
Gauge Dimensions: 145 x 73 x 37mm (5.7 x 2.84 x 1.46”), without transducer
1 Dependent on material being measured & transducer being used.
2 On steel. 3 Approximate battery life, when in Continuous Reading Mode at a reading rate of 4Hz. Rechargeable batteries may differ.

Include:
Dakota CX2:
(1) Dakota NDT CX2 Ultrasonic Material Thickness Gauge
(1) 5MHz ¼" right angle dual element transducer (TXC5M00CP-4)
(1) Ultrasonic couplant
(1) Plastic Transit Case
(3) Screen Protectors
(1) Wrist Harness
(2) AA batteries
(1) Operating Instructions
(1) Calibration certificate
(1) DakMaster® Software CD & USB Cable

Dakota CX4:
(1) Dakota NDT CX4 Ultrasonic Material Thickness Gauge
(1) 5MHz ¼" HD right angle dual element transducer (TXC5M00CP-10)
(1) Ultrasonic couplant
(1) Plastic Transit Case
(3) Screen Protectors
(1) Wrist Harness
(2) AA batteries
(1) Operating Instructions
(1) Calibration certificate
(1) DakMaster® Software CD & USB Cable

Dakota CX6-DL:
(1) Dakota NDT CX6-DL Ultrasonic Material Thickness Gauge
(1) 5MHz ¼" HD right angle dual element transducer (TXC5M00CP-10)
(1) Ultrasonic couplant
(1) Plastic Transit Case
(3) Screen Protectors
(1) Wrist Harness
(2) AA batteries
(1) Operating Instructions
(1) Calibration certificate
(1) DakMaster® Software CD & USB Cable

Dakota CX8-DL:
(1) Dakota NDT CX8-DL Ultrasonic Material Thickness Gauge
(1) 5MHz ¼" HD right angle dual element transducer (TXC5M00CP-10)
(1) Ultrasonic couplant
(1) Plastic Transit Case
(3) Screen Protectors
(1) Wrist Harness
(2) AA batteries
(1) Operating Instructions
(1) Calibration certificate
(1) DakMaster® Software CD & USB Cable
