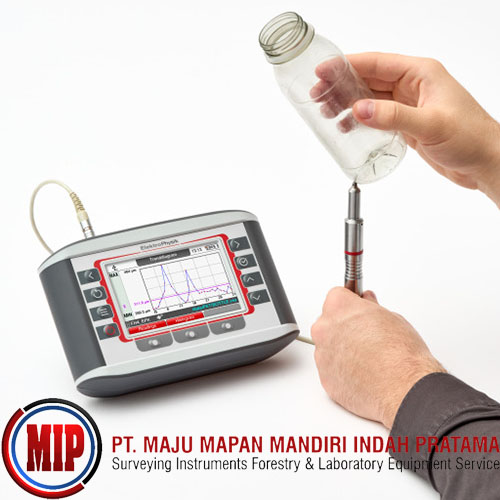

ElektroPhysik MiniTest FH with FH4 Sensor Magnetic Wall Thickness Gauge

The MiniTest FH magnetic thickness gauge is designed for non-destructive measurements up to 24mm / 1". The MiniTest FH offers straightforward thickness measurements of non-magnetic materials such as plastic, glass, synthetics, non-magnetic metals, and composites. Components with complex geometries can also be measured with ease.
An intelligent SIDSP sensor enables the MiniTest FH to provide high-precision measurement and reproducibility while compensating for the influence of temperatures in the measuring environment and in the object being measured. A wide range of sensors allows to adapt to different applications and measuring tasks.

Features
High precision wall thickness measurement up to 24 mm
Exceptional accuracy and repeatability through sensor-integrated digital signal processing (SIDSP®)
2 million readings storable in more than 200 batches
Up to 20 readings per second
Wear-resistant sensors with hardened sensor tips
Direct data import into evaluation software
Bluetooth, USB and RS 232 C interfaces
IP 65 Water and Dust Resistance

FH4 Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- Non-Magnetic Balls
- 1.5mm (100 pcs)
- 2.5mm (100 pcs)
- 4.0mm (50 pcs)
- Zero calibration tip for 1.5mm, 2.5mm and 4.0mm balls
- Calibrations Standards: 0.25mm / 1.0mm / 3.0mm

FH4-1MM Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- Non-Magnetic Balls
- 1.0mm (100 pcs)
- 1.5mm (100 pcs)
- 2.5mm (100 pcs)
- 4.0mm (50 pcs)
- Zero calibration tip for 1.0mm, 1.5mm, 2.5mm and 4.0mm balls
- Calibrations Standards: 0.15mm, 0.25mm, 1mm and 3mm

FH4-M Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- Non-Magnetic Balls
- 1.5mm (100 pcs)
- 2.5mm (100 pcs)
- 4.0mm (50 pcs)
- Magnetic Balls
- 1.5mm (25 pcs)
- 3.0mm (20 pcs)
- Zero calibration tip for 1.5mm, 2.5mm, 3.0mm and 4.0mm balls
- Calibrations Standards: 0.25mm, 1mm, 3mm and 8mm

FH10 Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- Non-Magnetic Balls
- 2.5mm (100 pcs)
- 4.0mm (50 pcs)
-6.0mm (25 pcs)
- 9.0mm (10 pcs)
- Zero calibration tip for 2.5mm, 4mm, 6mm and 9mm balls
- Calibrations Standards: 1mm, 3mm and 8mm

FH10-M Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- Non-Magnetic Balls
- 2.5mm (100 pcs)
- 4.0mm (50 pcs)
- 6.0mm (25 pcs)
- Magnetic Balls
- 4.0mm (20 pcs)
- 6.0mm (20 pcs)
- 9.0mm (10 pcs)
- Zero calibration tip for 2.5mm, 4.0mm, 6.0mm and 9.0mm balls
- Calibrations Standards: 1mm, 3mm, 8mm and 18mm

Kit Components
MiniTest FH KitThe MiniTest FH Gauge is supplied as a kit including, Gauge Body, USB Charger, USB cable, 8x NiMH AA rechargeable batteries (built-in), Magnetic Screwdriver, Quick-Start Manual, and Works Certificate in a foam-fitted carrying case.
