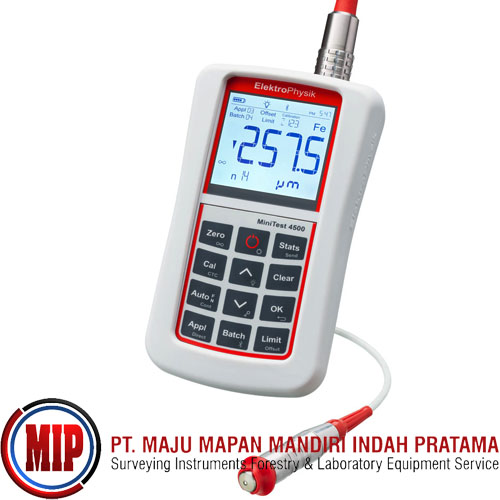

ElektroPhysik MiniTest 4500 Coating Thickness Gauge
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
MiniTest 2500 - Basic Model with memory and USB output
MiniTest 4500 - Adds Batch Memory, Bluetooth, RS232 and more...
The MiniTest 2500 and 4500 are high precision coating thickness gauges compatible with a large range of probes for measuring coatings on ferrous and non-ferrous metals. Different calibration methods and evaluation options for a wide range of tasks in the field of coating measurements.
MiniTest coating thickness gauges are not only useful in the laboratory but are equally qualified for use in industrial applications thanks to their rugged housing with a IP 65 rating. Both models feature USB output for connection to notebooks and PCs. The MiniTest 4500 additionally offers a Bluetooth output for wireless data transfer to mobile devices like Smartphones and printers directly on site. All gauge functions can be triggered directly pressing a single key of the illuminated keypad. The large display with background illumination adds to a high level of user comfort and ergonomics. A broad selection of measuring sensors is available for the MiniTest 2500/4500 line of coating thickness gauges allowing it to handle standard applications as well more complex measuring tasks.
The scope of application is determined by the sensor connected to the gauge:
F-type (ferrous) sensors work according to the magnetic induction principle and can measure non-magnetic coatings such as paint, enamel, rubber, aluminum, chrome, copper, zinc etc applied on iron and steel (including steel alloys and hardened magnetic steels).
N-type (non-ferrous) sensors work according to the eddy current principle and measure insulating coatings such as paint, anodizing, ceramics etc. applied on all non-ferrous metals (for example aluminum, copper, zinc die cast, brass etc.) including austenitic steels.
FN-type (combination ferrous / non-ferrous) sensors combine both principles and identify the substrate underneath the coating thus automatically switching to the correct measuring principle to measure on base material steel or non-ferrous metal.
Features
All functions directly accessible
Large selection of interchangeable sensors
High-contrast display and illuminated keypad
Memory and Statistics
Bluetooth and USB Output
IP 65 Rated Rugged housing
Complete Kit
The MiniTest 2500-4500 is supplied with:
• MiniTest 2500 or 4500
• Plastic transport case
• Rubber protection case
• german, english, french
• x AA battery
• USB connection cable
