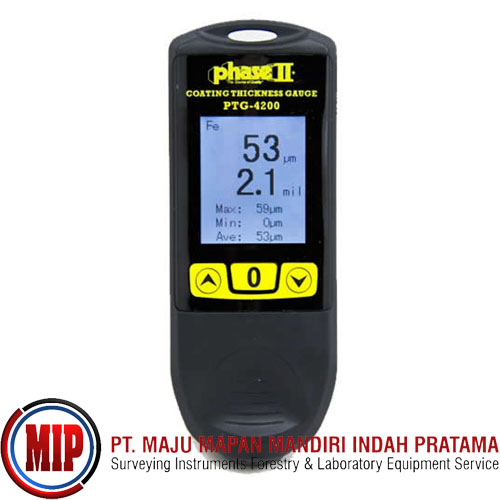

PHASE II+ PTG4200 Coating Thickness Gauge

Rp. 23,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Phase II PTG-4200 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction.
With this state of the art coating thickness gauge, you can easily detect the coating thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe.

The PTG4200 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.

The gauge utilizes an integrated probe that can automatically detect a Ferrous or Non-Ferrous substrate and comes with 2 substrate samples (steel,aluminum), 4 calibrated thickness samples, carry case, batteries and operation manual

Features:
Measuring range: 0-1,250 µm max. or 0-50 mils
Resolution: 1µm / 0.1mils
Accuracy: +/- 3% + 2µm ( +/-3%+0.1 mil )
Display: 3 digit selectable color LCD w/flip screen
Statistics: Min/Max, Average
Testing performance is both non-destructive and extremely accurate.

What's In The Box:
(2) AAA batteries
(2) Substrate samples (steel, aluminum)
(4) Calibrated thickness samples
(1) Carrying case
(1) User manual
