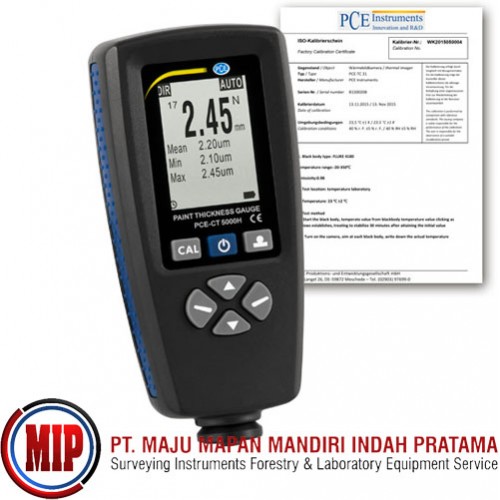

PCE CT500H-ICA Portable Coating Thickness Gauge

PCE-CT 5000H is a thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The thickness gauge automatically detects the type of metal to be measured. The PCE-CT 5000H thickness gauge uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.

Features:
- Designed for non-destructive testing and inspection
- Measures coating thickness on Fe and nFe metals
- Displays measuring units in μm, mm or mils
- Saves up to 2000 measurements to internal memory
- Practical V-groove on the measuring head
- One- to four-point and zero calibration
- Comfortable one-handed operation
- Programmable alarm limits
- High measuring range
- High measuring accuracy
- Automatic shutdown
- Incl. ISO Calibration Certificate

Complette Package:
1 x PCE-CT 5000H thickness gauge
2 x Zero calibration plates (ferrous and non-ferrous)
5 x Calibration plates
2 x 1.5V AAA batteries
1 x USB cable
1 x PC-compatible software
1 x User manual
1 x Carrying case
1 x ISO calibration certificate
