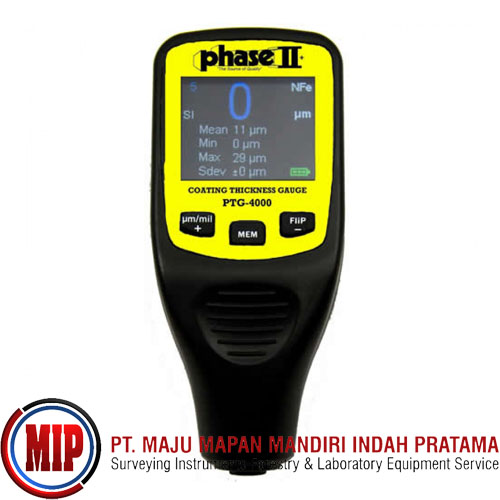

PHASE II+ PTG4000 Coating Thickness Gauge

Rp. 25,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Phase II PTG-4000 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction.

Testing performance is both non-destructive and extremely accurate.
With the Phase II PTG4000 state of the art coating thickness gage, you can easily detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe

The PTG-4000 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.

Features:
Coating thickness measurement with Color Flip Display
Measuring range: 0-1,250 µm max. or 0-50 mils
Resolution: 1µm / 0.1mils
Accuracy: +/- 3% + 2µm ( +/-3%+0.1 mil )
Display: 3 digit color LCD
Statistics: Min/Max, Average, Std Deviation
Single or Continuous Measurement(Selectable)
Min. measuring area: 0.2" x 0.2" (5mm x 5mm)
Min. radius of curvature: Convex: 0.12" (3mm) Concave: 1.2" (30mm)
Min. substrate thickness: Ferrous: 20 mils (0.5mm) Non-ferrous: 2 mils (50 µm)
Max. Surface temperature of test object: 302 degrees F (contact time max is 2 seconds)

What's In The Box:
(2) Substrate samples(steel,aluminum)
(4) Calibrated Thickness samples
(1) Carry Case
(2) AAA Batteries
(1) Manual
