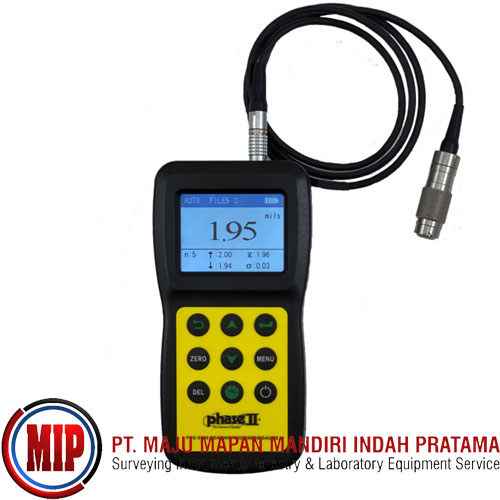

PHASE II+ PTG5500 Coating Thickness Gauge

Rp. 32,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The PHASE II PTG-5500 coating thickness gauge can perform two different methods of calculating coating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction.
Coating thickness testing performance is both non-destructive and extremely accurate.

With this state-of-the-art coating thickness gauge, you can easily detect the thickness of the nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect probe.
The PTG-5500 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.

Features:
Two measuring modes: single or continuous (Scan mode) (selectable)
Automatic Temperature compensation: compensates for the measurement distortion caused by the change of temperature
Displays five statistical values: average (MEAN, maximum (MAX), minimum (MIN), measure number (No.), and standard deviation (S.DEV)
Calibration: Simple 1-step calibration using a supplied metal plate and reference shims
Data storage: close to 500 measurements in memory. (99 measurements/group x 5 groups) Includes data output software and cable

In The Box
PTG-5500 Coating Thickness Gauges
Substrate samples (steel, aluminum)
Calibrated thickness samples
Carry case
Batteries
Operation manual
