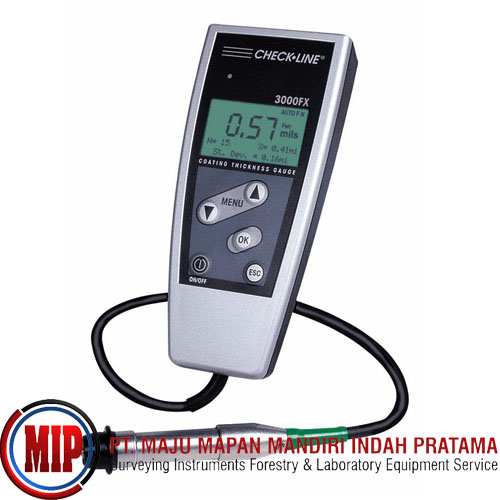

CHECKLINE 3000FX DCFN Model Coating Thickness Gauge

Features:
3 Models
DCF-3000FX - Ferrous Only Model
DCN-3000FX - Non-Ferrous Only Model
DCFN-3000FX - Combination Ferrous & Non-Ferrous Model

The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
Data transfer to a printer or PC takes place via an infra-red interface
Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading.
The 3000FX Series identifies the substrate and activates the appropriate measuring procedure.
Menu in a choice of three languages ensures ease of operation
The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces.
Two optional high temperature footers for measuring on surfaces up to 150 °C/302 °F or up to 300 °C/572 °F
Traceable Certificate Included at no additional cost
1 Year Warranty

The new Check-Line 3000FX Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for

varnish, paint and electroplated coatings on iron/steel and
varnish, paint and anodising coatings on non-ferrous metals and on austenitic stainless steels
All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear.
A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.

Wherever coatings are applied – whether on visual and aesthetic grounds, to prevent corrosion protection, or for functional and mechanical reasons – the coating thickness represents an essential quality feature. The 3000FX Series is ideal for speedy, non-destructive and exceptionally precise coating thickness measurement.

Includes: Gauge, ferrous and or non-ferrous zero plate(model dependent), 2 calibration standards, 2 AA batteries, hard carrying case, instruction manual and calibration certificate.

Specifications:
Measuring principle: magnetic induction principle (Ferrous).eddy-current principle (Non-Ferrous)
Range: 0 - 60.00 mils. 0 - 1500 µm
Accuracy:  ±0.04 mils / 1µm + 1% of reading
Resolution: Refer to RESOLUTION TABLE, above
Display: back-light, 4-digit alphanumeric, digit height 10mm
Minimum Measuring Area: 0.2" x 0.2" (5 mm x 5 mm)
Minimum Curvature Radius: convex: 0.12" (3 mm), concave: 0.2" (5 mm)
Minimum Substrate Thickness: Ferrous: 20 mils / 0.5 mm. Non-Ferrous: 2 mils / 50 µm
Calibration: factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value
Memory: 80 readings
Statistics: Program Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data Output : Infrared IrDA Standard
Operating Temp. : 32 °F - 122 °F / 0 °C - 50 °C
Surface Temp.:  5° F - 140° F / -15° C - 60° C (standard). 5° - 302° F / 15° - 150° C (w/3000-HTF). 5° - 572° F / 15° - 300° C (w/3000-HTF-300C)
Storage Temp.:  -4 °F to 140 °F / -20 °C to +60 °C
Power:  2 AA 1.5V
Dimensions:  5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
Weight:  7 oz (200 g) (gauge + probe)
Protection Class:  IP 52 (proof against dust and dripping water)
Standards: DIN, ISO, ASTM, BS
