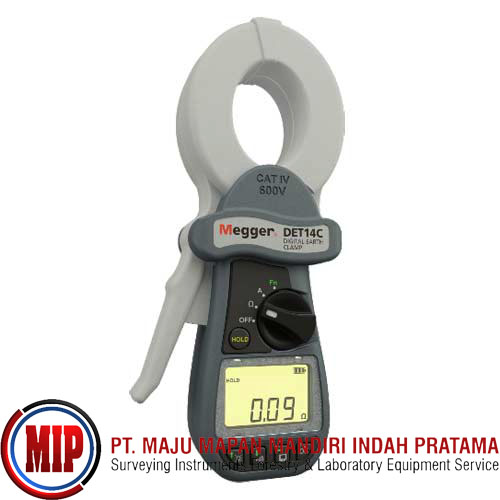

MEGGER DET24C Clamp On Ground Resistance Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The DET14C and DET24C are advanced clamp-on ground resistance testers that set new standards in terms of access, performance, features, simplicity of operation and safety. The DET14C and 24C are used to measure earth/ground resistance in multiple loop installations without disconnecting the ground.
Designed with flat core ends, these units prevent dirt build-up, ensuring measurement integrity and improved reliability over products with interlocking teeth. Other enhancements include safety to CATIV 600V, a built-in filter function for electrically noisy environments, time and date stamped stored test results and ultra long battery life. Megger has taken what is now a standard test method and significantly improved its field applicability.
The DET14C and DET24C are designed to quickly measure ground electrode resistance in applications where this type of test method can be used and/or verify the integrity of ground connections. The goal of ground resistance testing is to ensure that the resistance ground electrode system is low enough to prevent or limit voltage rises caused by fault current, electrical surges, lightning strikes, etc.
Clamp-on ground testers work in applications where there is a loop resistance to measure with ground paths in the system (the more ground paths, the closer to the actual resistance). A utility pole ground system is a classic example of this type of application.
Features
0.05 Ω to 1500 Ω resistance range
0.5 mA to 35.0 A current range
Large elliptical clamp design
Smooth mating surfaces on the clamp head
Visual alarm
Noise filter function
Intelligent data hold function
Data storage with time- and date-stamped results
CATIV 600 V operation
Specifications
Resistance (Accuracy) ±1.5% ±0.05 ohm
Resistance (Range) 0.05 to 1500 ohm
Resistance (Resolution) 0.01 ohm
Leakage current measurement accuracy ±2% ±0.05 mA
Test Frequency Range 1390 Hz
Data storage (Memory Capacity) 256 records
Product Type Ground Resistance Testers
Safety CAT IV 600V
Power (4) AA batteries
