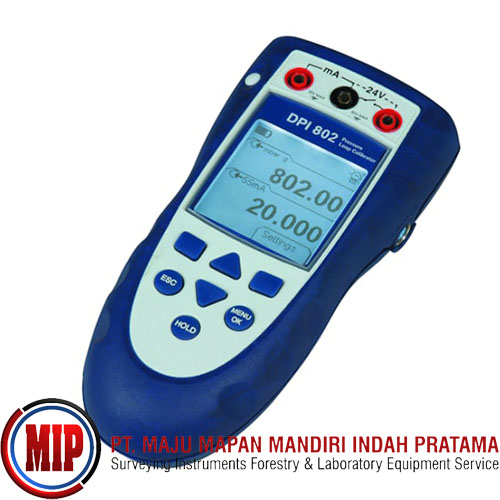

DRUCK DPI802 Pressure Indicator and Loop Calibrator

Druck DPI 802 [DPI802-300PSIG] Pressure Indicator and Loop Calibrator w/Standard Accuracy, 0 to 300 psi Absolute. Druck DPI 802 Pressure Indicator and Loop Calibrator w/Standard Accuracy & Single Range. The Druck DPI 802 pressure loop calibrator provides simultaneous pressure and mA measurement for transmitter and loop maintenance. It is designed for technicians that are in the field performing work such as calibration and repair service or equipment installation and maintenance, as well as technicians in a variety of manufacturing environments. A Druck DPI 802 pressure indicator and loop calibrator used in conjunction with a pressure source from the Druck range of hand pumps provides a simple and cost effective calibrator for gauges, indicators, and recorders. Pressure Instrument and Loop Maintenance: Druck DPI 802 Pressure Loop Calibrator. The Druck DPI 802 pressure loop calibrator provides pressure and mA measurement for transmitter / loop maintenance. Other features of the Druck DPI 802 pressure loop calibrator include: 24 Loop Power Supply - Energizes transmitters and control loops; Automatic Switch Test - Captures open/closed trip values, which provides a fast and highly accurate "safety system" check; HART Resister - Can be switched into the loop when required by a HART digital communicator and avoids the inconvenience of carrying a 250Ω resistor.

Part Number: DPI802-300PSIG
Model: Loop calibrator (24vdc supply & current measurement)
Accuracy: Standard (0.1, 0.075, or 0.05% FS depending on range)
Pressure Inputs: Single
Pressure Range 1: 0 to 300 psi absolute
Pressure Range 2: Only available with dual inputs
The pressure ranges from 10 in H2O to 10,000 psi (25 mbar to 700 bar).
Single- or dual-range configuration
IDOS pressure sensors provide accuracies to 0.05% FS all-inclusive or 0.01% precision.
Measure the mA, test the switch, and check the 24V loop power.
Large backlit display, menu-driven interface
HART® loop resistor
Robust and weatherproof
Compact, simple to use, and easy to carry
Convenient one-handed operation
Secure grip, impact resistant, elastomer protected
A plug-and-play connector equips the IDOS universal measurement modules.
Applications:
Pressure test and maintenance
Transmitter calibration
Loop set-up and diagnostics
Switch verification

Include:
(1) DPI802-300PSIG - Pressure Indicator and Loop Calibrator
(1) Set of Electrical Test Leads
(1) Set of Batteries
(1) Calibration Certificate
(1) User Guide
