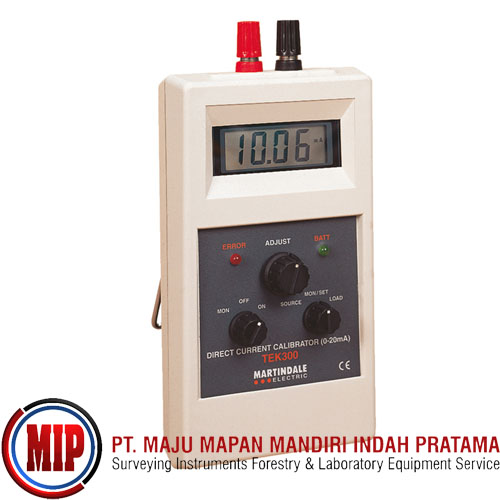

MARTINDALE TEK300 20mA Loop Calibrator

Rp. 38,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Martindale TEK300 process control calibrator features sink, source and monitor modes for 0 – 20mA and is ideal for most process control applications, as well as general purpose signal injection applications.

The handheld unit is fully portable and has a large 3.5 digit LCD display, with overload protection for extra safety.

The Martindale TEK300 is supplied with batteries & instruction manual.

Specifications

DC/DC converter output 28.5V (+0.1V)

Current range 0-20mA F.S. (+0.1%)

Resolution 10µA

Temperature drift 150ppm/°C

Linearity +0.15%

Output noise (typically) 4mV p/p

Indicators LED (green) – battery OKLED (red) – output error

Display 3½ digit LCD

Output connectors 4mm terminal posts (19.05mm apart)

Operating temperature 0-50°C

Supply 2 x 9V alkaline batteries, MN1604 or equivalent (included)

Housing light grey ABS hand-held, supplied with stand

Weight 380g approx.

Dimensions 180 x 100 x 44mm
