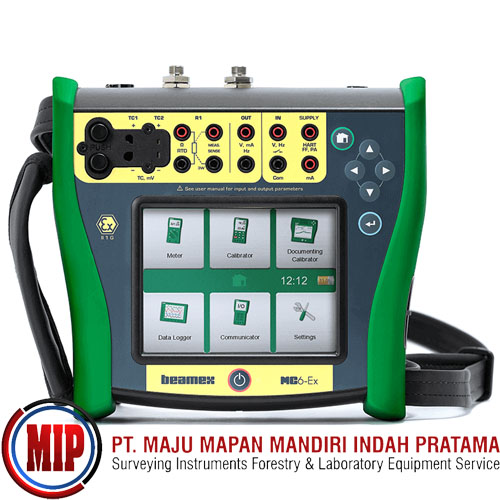

BEAMEX MC6-Ex Advanced Field HART Calibrator

The safest choice
If you use a non-Ex calibrator, you need to spend time and effort on hot work permits. Using an intrinsically safe calibrator in hazardous areas is the easiest and safest choice.
We made the MC6-Ex ATEX and IECEx certified for every Ex zone, so you can take it to Zone 0, Zone 1 and Zone 2 (Division 1 / Division 2).
The MC6-Ex is the safest choice for all your hazardous areas.

Accuracy guaranteed
We made the MC6-Ex a very accurate, reliable and stable calibrator.
Each calibrator is delivered with a traceable, accredited calibration certificate as a standard.
Take a look at the brochure for detailed uncertainty figures.

Integrated field communicator
We equipped MC6-Ex with an integrated field communicator for HART, FOUNDATION Fieldbus H1 and Profibus PA so you can communicate with smart instruments.
Each communicator is a separate feature, so you can pick the ones you need, or add them later on.
You can configure, calibrate and trim your smart instruments with this single tool.

Paperless calibration
We made the MC6-Ex a documenting calibrator.
When you use it with Beamex calibration software (Beamex CMX or Beamex LOGiCAL) you have a fully paperless calibration process. You no longer have to write calibration results on paper, perform manual error calculations, or manually type results into the software. The whole calibration process is electronic and fully paperless, which saves time and reduces the risk of errors.
You can also integrate the Beamex solution into your company’s ERP system for a paperless flow of work orders and calibration results.

For the mobile worker
We made the MC6-Ex a really versatile device.
When you have a multifunctional process calibrator for pressure, temperature and electrical signals combined with a multi-bus field communicator in one robust, easy to carry, IP65 (dust and water) casing, you can carry less.
We think it is easier to carry just one device when you go out to the field.

Data integrity - pharmaceutical and regulated industry
When you use the Beamex MC6 family calibrators together with Beamex CMX calibration management software, you have a solution that ensures the integrity of the calibration data throughout the whole calibration process.

Specifications
General Spec ifica tions
General
Display 5.7” Diagonal 640 x 480 TFT LCD Module
Touch Panel 5-wire resistive touch screen
Keyboard Membrane keyboard
Backlight LED backlight, adjustable brightness
Weight 2.5 … 2.9 kg (5.5 … 6.4 lb)
Dimensions 207 mm x 231 mm x 80 mm (D x W x H)
Battery Pack type Rechargeable NiMh, 4200 mAh, 9.6 V
Charging time 10 hours from 0 to 100% at 0 … 30 °C (32 … 86 °F)
Charger supply 100 … 240 VAC, 50–60 Hz
Battery operation 4 … 8 h (Heavy / Normal usage)
Operating temperature –10 … 50 °C
Operating temperature while charging batteries 0 … 40 °C
Storage temperature –20 … 60 °C
Specifications valid –10 … 50 °C, unless other mentioned
Humidity 0 to 80% R.H. non condensing
Warmup time Specifications valid after a 5 minute warmup period
Max. input voltage 30 V AC, 30 V DC
Ex Safety ATEX directive 2014/34/EU
Ex marking II 1 G Ex ia IIC T4 Ga Ta = –10 °C … +50 °C
Ex marking (North America): Class I, Zone 0, AEx ia IIC T4 GA Class I, Division 1, Groups A-D, T4
Tamb –10 °C to +50 °C, Intrinsically Safe, Sécurité intrinsèque
ATEX Certification EN 60079-0:2012/A11:2013 EN 60079-11:2012 Certificate No. EESF 18 ATEX 071X
IEC Certification IEC 60079-0:2017, Edition:7.0 IEC 60079-11:2011, Edition:6.0 Certificate No. IECEx EESF 18.0033X
North American Certification (SGS): UL 913, 8th Ed. Rev. October 16, 2015 UL 60079-0 6th Ed. Rev. July 26, 2013
CAN/CSA C22.2 No. 60079-0:15 Rev. October 2015 UL 60079-11, 6th Ed. 02/15/2013
CAN/CSA C22.2 No. 60079-11:14 Certificate No SGSNA/18/SUW00222
Rohs Compliance RoHS II Directive 2011/65/EU, EN 50581:2012
Safety Directive 2014/30/EU, EN 61010-1:2010, EN 61010-2-030:2010
EMC Directive 2014/30/EU, EN 61326-1:2013, EN 61000-3-2-:2014, EN 61000-3-3:2013
Ingress protection IP 65, IEC/EN 60529
Drop test 1 meter drop test
Max Altitude 3000 m (9842 ft)
Display update rate 3 / second
Warranty Warranty 3 years. 1 year for battery pack. Additional warranty extension programs available.

STANDARD ACCESSORIES
• Accredited calibration certificate
• User guide
• Safety Information leaflet
• Computer cable
• Battery charger / eliminator
• Internal NiMH battery pack
• Test leads and clips
