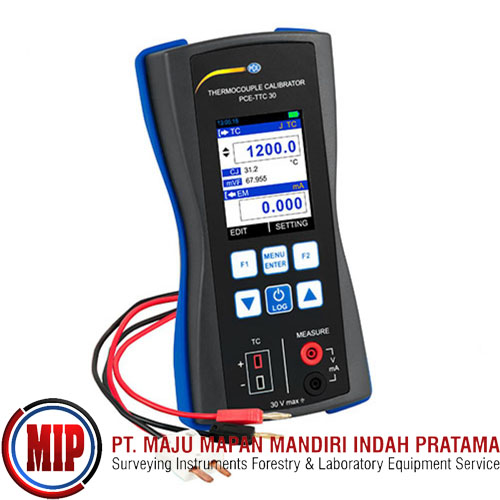

PCE TTC30 Thermocouple Calibrator

PCE-TTC 30 Thermocouple Calibrator Thermocouple Calibrator to simulate and measure thermocouples, current and voltage / Li-Ion battery / Continuity tester / Ramp function.
The thermocouple calibrator PCE-TTC 30 can be used to simulate different thermocouples as well as mV. Thus, the thermocouple calibrator can be used for many thermometers and temperature displays with thermocouple connection. The PCE-TTC 30 thermocouple calibrator simulates the most popular thermocouples, including K, T, S. The simulator for thermocouples has an accuracy of 0.3°C / 0.54°F, making it easy to accurately calibrate thermometers.
In addition to direct specification of temperatures or extra-low voltages up to 250 mV, the thermocouple calibrator can be operated in ramp mode. Here, the user can decide whether the ramp should be run indefinitely or at defined intervals. The miniature USB interface can be used to load the thermocouple calibrator. Furthermore, recorded data can be transmitted via this interface to a PC.

Features:
Simulation and measurement mode
Battery operation
For thermocouples E, J, K, T, B, R, S, N, mV
24 V supply for current loops
HART compatible
Manual mode & ramp function
Continuity test
Data logger function

What's In The Box:
(1) Thermocouple Calibrator PCE-TTC 30
(2) Laboratory cables with 2 mm plug
(1) Thermocouple adapter to 2 mm plug
(2) Adapter 2 mm on 4 mm laboratory cable
(2) Alligator clips
(1) Mini USB cable
(1) Power supply 5 V / 1 A
(1) Carrying bag
(1) Software
(1) User manual
