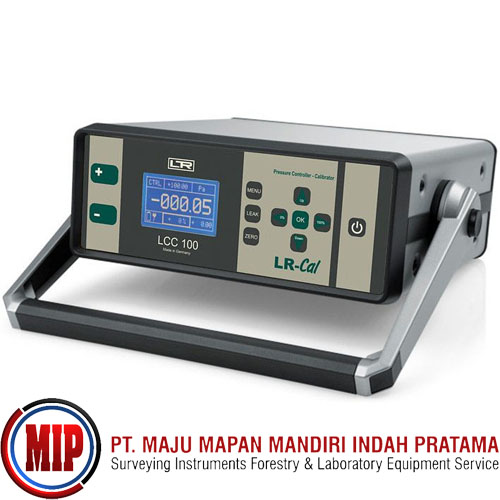

LR-Cal LCC100 Electronic Pressure and Vacuum Controller and Calibrator

The LR-Cal LCC 100 pressure controller measures and generates pressure and vacuum and consequently it is more than a mere measuring instrument - it can also be applied as test and calibration instrument for pressure sensors, pressure swithes and pressure gauges. Thanks to internal pressure/vacuum generation no auxiliary tools are required for operation. An internal Li-Ion battery (chargeable) makes mobile operation very easy.
Parallel operation of mains and battery supply allows for maximum flexibility.

Pressure Controller
Model LR-Cal LCC 100
for small pressure, vacuum and differential pressure ranges
Pneumatic, measures pressure and vacuum
Generates Pressure/Vacuum -600 mbar to +1000 mbar (built-in electrical pump)
Pressure ranges to 1 mbar, 10 mbar, 100 mbar and 1000 mbar, incl. factory calibration certificate
Accuracy up to ±0.1% FS (+1 digit)
Great adjustment accuracy 0.01% FS
Chargeable Li-Ion battery
Generates pressure/vacuum by pressing a key

Typical Applications:
Mobile and stationary pressure standard for low pressure and vacuum
Mobile and stationary of all kind of pressure reading instruments
Mobile and stationary pressure and vacuum source for calibration purposes
Leak test

Standard scope of delivery:
Pressure Controller LR-Cal LCC 100 with built-in Li-Ion battery
Mains adapter 90...264 VAC
1 piece of transparent pneumatic hose/tube
Factory certificate of calibration
Operating manual
