SIKA EC25 Multifunction Process Calibrator

Rp. 85,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

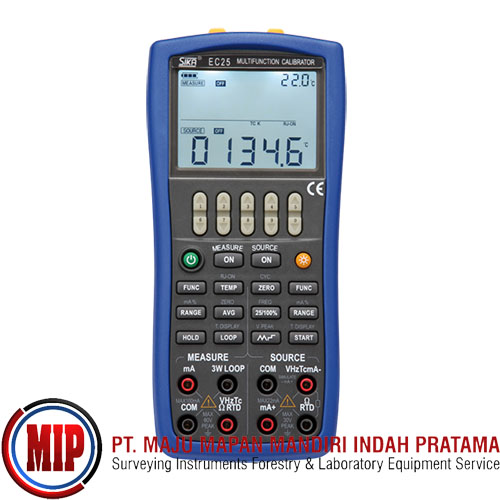

Equally at home in the lab or out in the field, Sika's EC 25 is a battery-powered, multifunctional calibrator suited for measuring and sourcing thermocouples and RTD sensors as well as resistance, frequency and more.

The EC 25 is the upgraded version of Sika's EC 10 calibrator. It features wider measuring and sourcing capabilities, with resistance generator range of 0 to 40000Ω, resistance measurement range of 0 to 5500Ω and mV generator function with range of -100 to 110mV (+mV measurement function with range of -50 to 550mV).

Additional functions of this calibrator include loop signal generation from 0 to 22mA, loop current signal measurements from -5 to 55mA, voltage signal genration from -1 to 11V, voltage signal measurements from -5 to 55V and also performs frequency and pulse signal generation and measurement.

A multifunctional double LCD display keeps track of measurement and sourcing, complete with backlight for use in the dark and dual measurements (for example, it could show a reference voltage alongside a temperature measurement).

Sika EC 25 Multifunctional Calibrator Key Features
RTD signal generation and measurement for Pt100, Pt200, Pt500, Pt1000, Cu10 and Cu50 sensors
Ω generator function with range of 0 to 40000Ω
Ω measurement function with range of 0 to 5500Ω
Selectable temperature units: Celsius/Fahrenheit
Measurement of 2/3 multi-wire connections
Thermocouple signal generation and measurement for J, K, T, R, S, B, N and E thermocouples
mV generator function with range of -100 to 110mV
mV measurement function with range of -50 to 550mV
Loop current signal generation from 0 to 22mA
Loop current signal measurements from -5 to 55mA
Voltage signal generation from -1 to 11V
Voltage signal measurement from -5 to 55V
Continuity measurements
Frequency and pulse signal generation from 3Hz to 110kHz
Frequency and pulse signal measurements from 3Hz to 50kHz
Linear steps and ramps
Output zero
Transmitter function simulation
Data hold
Averaging function
Room temperature display

What's Included?
Sika EC 25 Multifunction Calibrator
4 x 1.5V AAA Batteries
2 x Sets of Safety Instrument Leads (4mm)
Alligator Clips
Nylon Pouch
