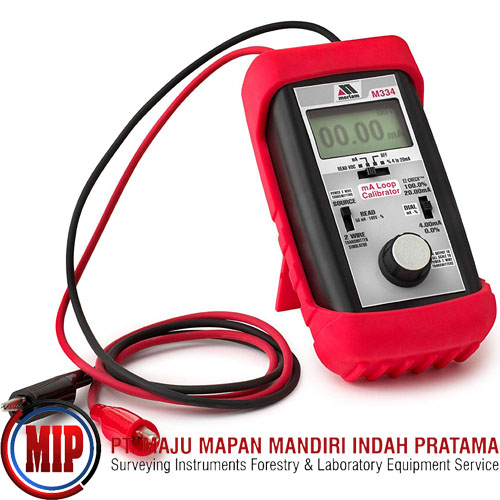

MERIAM M334 Milliamp Loop Calibrator
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Meriam M334 loop calibrator is a state of the art, highly reliable, rugged and easy- to-use milliamp calibrator. It has the functions necessary to perform all the required maintenance and calibration tasks of virtually any 4-20 mA loop. It provides source and read milliamp functions along with power and measure, and two-wire transmitter simulations. In addition it can measure DC voltage for troubleshooting power supplies.
The Meriam M334 loop calibrator is functionally equivalent to similar calibrators with many additional benefits. These improvements include better long term stability, accuracy, reliability and ruggedness including significantly improved battery life. The combined improvements allow the Meriam M334 to meet or exceed all of the expected performance and functions of similar products.
Features:
Source 0.00 to 24.00 mA (-25.00% to 125.0%)
Read 0.00 to 52.00 mA (-25.0% to 300.0%)
Simulate 2-wire transmitters
Power and measure 2-wire transmitters
Accuracy to better than 0.025% (±1/2 LSD) - within ±0.005 mA from 4.00 & 20.00 mA EZ-Checks
Large high contrast graphic display viewable in all lighting conditions and angles
Read voltage function 0.00 to ±99.99 VDC
EZ-dial know easiliy adjusts output by 0.01 mA (0.01%)
EZ-Check 3-position slide switch - instantly output 4.00 or 20.00 mA calibration values
Overload protected - 135 vrms protection. Fuse-less protection from accidental misconnection
Compact, lightweight and rugged with heavy protective rubber boot
What's In The Box:
(1) M334
(1) Protective red rubber boot
(1) NIST Calibration Certificate
