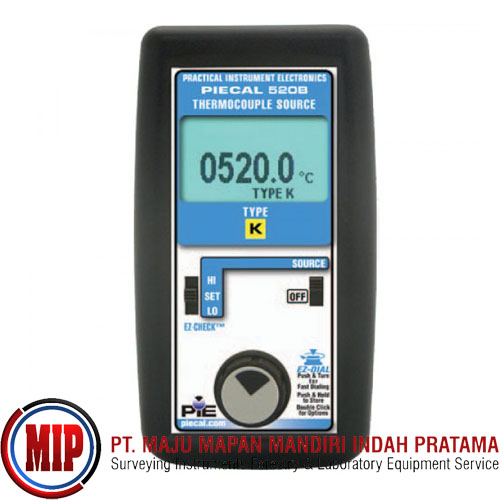

PIECAL 520B Single Thermocouple Calibrator

Rp. 29,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Features:
Accuracy ±(0.015% of mV Setting + 0.009mV)
Calibrate in temperature for your T/C type
Adjustable temperature output in selectable 0.1°C or 0.1°F steps
Select from Types J, K, E, T, R, S, B, N, G, C, D, L, U and P
Typical accuracy of ±0.35°C (0.5°) for Type K
EZ-Dial™ knob easily adjust output by °C or °F with 0.1° resolution
Three position EZ-Check™ switch for 0% and 100% span adjustments
Uses standard "AA" Alkaline Batteries
Superior battery life of 45 hours under typical continuous usage
Easy access to battery compartment
Lightweight and Rugged with a Solid Feel
Small and tough
Protected to 60V

The PIECAL 520B Thermocouple Simulator simulates a dedicated standard thermocouple curve over the entire industrial temperature range. The PIECAL 520B provides precise temperatures for inputs to all types of instruments such as transmitters, recorders, controllers, alarms, data acquisition, and computer systems. PIECAL 520B is cold-junction compensated for changes in ambient temperature. The PIECAL 520B offers the highest performance and functions in its class by exceeding the accuracy and functions of many higher priced thermocouple calibrators.

The low cost PIECAL Model 520B is an “easy as PIE” to use thermocouple source for checkout and calibration of all thermocouple instruments in the field, shop or control room.

Includes:
AA Alkaline Batteries
Certificate of NIST Certification
Evolution mV Wire Kit (1 Red & 1 Black Leads w/ Retractable Shield Banana Plugs & Alligator Clips)
