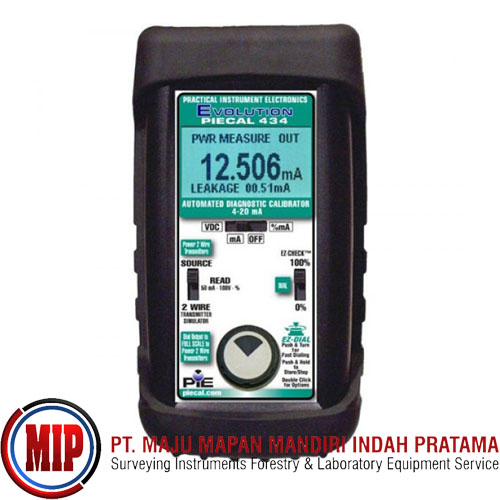

PIECAL 434 Automated Milliamp Loop Calibrator

Rp. 42,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Features:
Calibrate Milliamp Instruments
Source 0.000 to 24.000 mA & -25.00 to 125.00% of 4-20 mA
Read 0.000 to 52.000 mA, -99.99 to 99.99 V
Simulate 2-Wire Transmitters
Power & Read 2-Wire Transmitters
Menu Selectable 250 W resistor for HART compatibility
Calibrate with confidence
Accurate to ±0.025% of Span at 4.000 & 20.000 EZ-CHECK outputs
Easy-to-Read Display
Turn on the backlight to read in dark areas of the plant
Locate Loop Current Leakages
Automatic indication of Loop Current and Leakage Current. Measure ground current leakage from faulty wiring, flooded conduit and corrosion bridges. Leakage appears as a Zero Shift and helps you decide if the transmitter needs calibration or if there is some problem in the loop wiring.
Faster Calibrations

Instantly select three outputs with EZ-CHECK switch Easily find trip points with two speed EZ-DIAL plus Automatic Stepping & Ramping
Functional Replacement for the Altek 434

Includes:
Test Leads
NIST Calibration
